Tackle both wet and dry messes.
Easily convert between dry handheld vacuum and a smart mop floor cleaner Dual Brushroll System and Superior Water Spray
Includes 2 multi-direction brushrolls to easily clean floors
Auto mode wets nozzles and floor for continuous and effortless cleaning
Manual water spray allows you to spray more water for more difficult spots
Collects water as you clean to ensure floors dry quickly Self-Cleaning and Brushroll Heated Drying
Cleans brushrolls and flushes debris into dirty water tank
Hot air brushroll drying makes clean up a breeze
Prevents odor build up Smart Commands
Vocalized notifications throughout the wet cleaning, self-cleaning, and drying process:
Power/cleaning mode and battery level
Empty/refill/clean water tank prompts
Brushroll and cleaning path blockage or jams
Self-cleaning/drying mode status updates
Multiple language selections and ability to mute smart commands Charging Base with Attachment Storage
Battery automatically charges when placed on the base
Store attachments and cleaning brush in set location Self-Standing
Disruptions during cleaning are less of a hassle since it easily locks into place
No need to balance against furniture/walls or balance a mop in a bucket
Battery: DC 21.6V Li-ion Battery (4600mAh/99.63Wh)
Rated Power: 500W
Suction Power: 200AW
Charging Time: 4-5 hours
Voltage/Frequency: AC 100-240V, 50-60H
Waterproof Rating (Ingress Protection): IPX8
Product Weight: 11.3 lbs.
Clean Water Tank: 2.75 cups/.65 liters
Dirty Water Tank: 2.54 cups/.6 liters
Filtration: Sponge and plastic debris separator
Run Time: 20-29 minutes (depending on mode)
Product Weight: 5.26 lbs
Dust Cup Capacity: .85 cups/.2 liters
Filtration: Cyclonic separator, H10 Pleated HEPA, and Sponge
Run Time: 20-90 minutes (depending on mode/floor type)
• Smart commands
• Multi-directional brushrolls
• Variable speed control
• Wet and dry cleaning
• Collects dirty water for fast floor drying
• Self-cleaning mode
• Heated drying
• Auto mode and/or manual water spray
• Self-standing (wet cleaning)
• Attachments: Long, flexible crevice tool with LED light, dusting brush, and cleaning tool
• Noise level: ≥72 dB(A)
1-Year Limited Warranty
UPC: 098612133452
Country of Origin: China

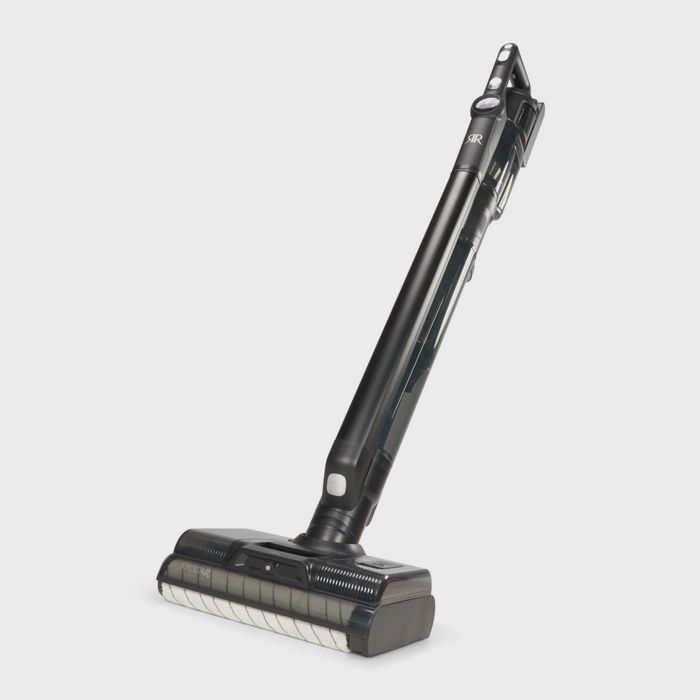

The Riccar Multi-Clean Smart Mop and Vacuum makes floor cleaning quick and simple. It vacuums dirty water throughout cleaning so you’re not continually using dirty water. Mops and buckets are a thing of the past.
The R70 defaults to auto mode when powered on. Press the on/off button to turn on or off. Gently press foot on the top of the nozzle to recline. Fill the clean water tank before cleaning.
Auto mode: Self-adjust speed based on cleaning area. It will wet brushrolls and dispense water as you clean.
Max mode: Select speed control button on handle to activate. Battery charge level must be over 20% to use.
Manual water spray: Press the spray button to spray additional water. Water sprays in a fan shaped water flow. Great for tougher messes.
After you’ve cleaned floors, place machine back on charging base and start self-cleaning mode for easy clean up. And don’t forget to relax with a friend with the extra time saved from cleaning your floors with the R70.
Cautions: For hard floor cleaning only. The R70 is not intended for use on rugs or carpet. Wet application not recommended for unsealed hard wood floors. Water will effectively clean floors. If you’ve been using a cleaning solution and switch to water only, you may experience some streaking or cloudiness on floors from existing residue. Streaking will subside after all residue is cleaned from floors. Follow flooring manufacturer’s recommendations for cleaning. Water may drip from the bottom of the nozzle after use. Store the machines on the charging base to avoid damage to floors.
The Riccar Multi-Clean Smart Mop and Vacuum easily converts to a handheld vacuum for spot cleaning and dry messes. Dry mode has three suction power levels.
The R70 attachments are great for quick clean ups, dusting, and spot cleaning dry messes. Attachments connect to the handheld vacuum with a button lock. Included cleaning attachments:
Flexible, Long Crevice Tool with LED Light: Use for hard-to-reach places. Good for crevices in furniture, corners of the rooms or cabinets, lint traps, cars, and many other places
Dusting Brush: Use to clean soft furnishings, upholstery, curtains, lamp shades, for dusting hard surfaces, corners of the room and more.
Cleaning Brush: Detangle items wrapped around brushrolls & remove clogs, dirt, hair, debris or scale from dirty water tank and nozzle.
Vacuum should be turned off when changing attachments. Do not use handheld vacuum to clean wet messes.
The R70 includes self-cleaning and brushroll drying to help prevent odors from build up. It cleans wet brushrolls and flushes remaining debris into the dirty water tank. The full cleaning and drying cycle takes approximately 3 hours to complete.
Before starting cleaning and/drying mode. Ensure clean water tank is 1⁄2 full, dirty water tank is empty, and power cable is plugged in. Always empty dirty water tank after cycles are complete.
Self-Cleaning & Brushroll Drying Mode
Cleaning: Sprays water into the base and runs brushrolls through clean
water for multiple cycles. It sprays water twice during cleaning. Takes
approximately 2.5 minutes. Immediately transitions to drying cycle.
Drying: Brushrolls will spin dry on high speed for approximately 5
minutes, and hot air drying is activated. After the initial spin dry, it will slowly hot air dry for approximately 3 hours. Brushrolls slowly rotate throughout the drying process.
Drying Only Cycle (Quick Dry)
Bypasses the washing cycle and goes immediately into drying mode. Place vacuum on base and push the mode selector button.
Exiting Drying Cycles
Push the mode selector button to exit drying cycles early.
The Riccar Multi-Clean Deluxe Smart Mop and Vacuum is equipped with smart commands. It will vocalize reminders throughout wet cleaning, self-cleaning, and drying mode. Notifications are designed to enhance the cleaning process. Your vacuum will chime when turned on.
Selecting Language: Press the voice control button until you reach preferred language. It will announce other languages if a different language is selected. Notifications are available in Chinese, English, French, German, Italian, Korean, Russian, and Spanish.
Muting Smart Commands: Notifications can be turned on/off by pressing and holding the voice control button on the handheld vacuum until it says “voice turned off” or “voice turned on”
Auto Mode: Vacuum is set to automatic suction mode.
Max Mode: Vacuum is set to maximum suction mode.
Auto water spray turned off: Auto spray is off and manual spray is required.
Start auto water spray: Auto spray mode is starting.
Please install the dirty water tank: Dirty water tank needs to be installed.
Please clean tunnel and filters: Filter and tunnels need to be cleaned because of a clog.
Please clean brushroll: Brushroll is stuck or jammed and needs to be cleaned.
Start charging, please clean the dirty water tank to avoid odors: Vacuum is charging on base. Please
ensure the dirty water tank is clean.
Make sure there is water in the clean water tank: Check that the clean water is full. Refill if needed.
Please refill the clean water tank: Clean water tank is too low and needs to be refilled.
Dirty water tank full. Please clean the tank: Dirty water tank need to be emptied.
Low battery, please charge the battery: Battery is getting low and needs to be recharged soon.
Low battery, please charge first and then start cleaning: Battery is too low and needs to be
recharged before cleaning.
Shutting down: Battery charge is too low for cleaning and the vacuum shutting down. Charge the
battery to resume cleaning or self-clean mode.
Self-cleaning started: Self-cleaning mode initiated.
Start drying roller brush: Brushroll drying initiated.
The R70 will automatically charge when placed on the charging base. Battery can not be charged independent from the vacuum. Vacuum main body includes additional battery safety features, which is why battery cannot be charged separately.
To charge the battery, connect the power cord to the charging base. Cord connects on the rear side of base. Fully insert power cord into base. Align the battery pack along the groves on the back of the handheld vacuum. Press battery firmly until you hear a click. Place the vacuum on the base. Ensure the vacuum is connected to the base charging port. Battery charge percentage will display on the screen.
Battery Type: DC21.6V, 4600mAh/99,63Wh
Fully charge before first use
Charge time: 4-5 hours
Runtimes: Wet Cleaning Mode: 20-29 minutes
Dry Cleaning Mode: 20-90 minutes
