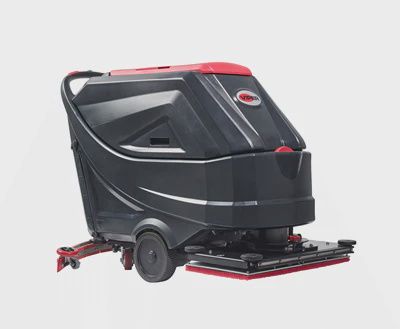

Name: ADVANCE AS7190TO-242 VIPER 28", ORBITAL HEAD, 22-GALLON, TRACTION-DRIVE, 37" SQUEEGEE ASSEMBLY, 25-AMP ON BOARD CHARGER, (4) 242 AH WET BATTERIES
Brand: Viper
SKU: AS7190TO-242
Price: 13216.0 USD
Availability: PreOrder

ADVANCE AS7190TO-242 VIPER 28", ORBITAL HEAD, 22-GALLON, TRACTION-DRIVE, 37" SQUEEGEE ASSEMBLY, 25-AMP ON BOARD CHARGER, (4) 242 AH WET BATTERIES

+4

+3

+2

ADVANCE AS7190TO-242 VIPER 28", ORBITAL HEAD, 22-GALLON, TRACTION-DRIVE, 37" SQUEEGEE ASSEMBLY, 25-AMP ON BOARD CHARGER, (4) 242 AH WET BATTERIES

Product Details

Brand: Viper

28", orbital head, 22-gallon, traction-drive, 37" squeegee assembly, 25-amp on board charger, (4) 242 Ah WET batteries

The VIPER AS6690T/AS7690T/AS7190TO walk-behind scrubbers prioritize smart performance, simple design, and user-friendly operation for cleaning medium to large sized facilities.

The AS6690T and AS7690T are both equipped with dual-brush decks for fast, effective cleaning, while the AS7190TO uses an orbital scrub deck for intensive multidirectional floorcare.

Each is an ideal solution for facility-managers and contract cleaners who need impressive results in hard-floor areas, whether they’re performing routine cleaning, heavy-duty scrubbing, or floor finish removal (orbital version).

Eco mode greatly extends battery run time for greater productivity.
Silent mode allows for cleaning in noise sensitive areas and is ideal for daytime cleaning.
Finish removal mode icon enables chemical-free floor finish removal (AS7190TO only).
Traction drive for increased productivity while reducing operator fatigue.
Designed for quick and convenient tools free daily maintenance requirements.

Solution tank (L)

22 Gal.

Product Model

8310-AS7190TO-242

Recovery tank (L)

24 Gal.

Length

58.7 Inches

Width with squeegee

37.4 Inches

Width without squeeegee

29.5 Inches

Height

40.2 Inches

Pad/Brush Size

14x28 Inches

Brush pressure (G/CM²)

93 Lbs / 120 Lbs / 143 Lbs

Solution flow

(0.16/0.29/0.5/0.66) Gal.

Sound pressure level (dB(A))

69 ± 3

Sound level - silent mode

65 ± 3

Machine speed

0 – 2.0 Miles per hour

Min. aisle turn (cm)

63 Inches

Battery compartment size (L x W x H)

21 x 15.1 x 15.3 Inches

Voltage (V)

24

Cleaning productivity (max.)

2272 m2/h

Gross weight (GVW) (KG)

794 Lbs.

Shipping weight (KG)

473 Lbs.

Packaging dimensions

66 x 36 x 48 Inches

Adjustable brush pressure

Debris tray

Display on machine

Squeezable drain hose with flow control

ECO mode

Traction drive

Viper AS7190TO Floor Scrubber
Model	AS7190TO
Power Source	Battery
Product Highlights	28" cleaning path (Orbital) 22-gallon solution and 24-gallon recovery tanks Forward scrubbing and vacuuming Self Propel Up to 24,400 sq ft per hour 93, 120 and 143 lbs of down pressure Orbital scrub deck Onboard charger
Key Features	Easy to use fingertip controls Compact design, simple to maneuver in tight areas Disc and vacuum motors protected from water splash of solution and recovery tanks Brush and squeegee assembly included The self propel feature helps move the machine forward with little to no operator effort LCD display for fast and effective training and operations
Key Benefits	Heavy duty cast aluminum squeegee assembly Rounded squeegee for quick and complete solution pick-up allows for one pass cleaning Multiple solution flow rates allowing superior cleaning results regardless of the application Powerful brush motor @ 1600RPMs in eco mode and 2200RPMs in standard mode
Ideal Users	Kitchens and cafeterias High traffic areas Corridors and hallways Offices Basketball, tennis and pickleball courts
Target Markets	K-12 Restaurants Assisted living facilities Healthcare Hospitality

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
