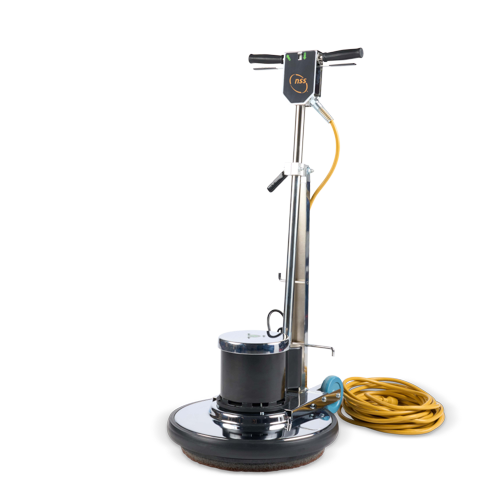

The NSS Galaxy 17DS N0302017 is a versatile 17-inch dual-speed commercial floor machine with a powerful 1.5 HP motor and selectable 180/300 RPM operation for scrubbing, stripping, polishing, spray buffing, and carpet bonnet cleaning.

Features:

• Dual-Speed 180/300 RPM Operation – The key upgrade over the standard Galaxy 17, allowing the operator to switch between low-speed scrubbing and higher-speed polishing applications.

• 1.5 HP Motor – Provides strong commercial power for demanding floor-care applications.

• 17-Inch Working Width – Offers a versatile size that combines productive coverage with good maneuverability.

• 120V, 50/60Hz Electrical Configuration – Designed for compatible 120V electrical service across either 50Hz or 60Hz frequency.

• Low-Speed Scrubbing Mode – The 180 RPM setting is suited for scrubbing, stripping, and other aggressive floor-maintenance tasks.

• High-Speed Polishing Mode – The 300 RPM setting adds versatility for polishing and carpet bonnet cleaning.

• Switch-Selectable Speed Control – Changes between low and high speeds with the flip of a switch.

• Multi-Purpose Floor Care – Suitable for scrubbing, stripping, spray buffing, polishing, shampooing, and bonnet cleaning with appropriate accessories.

• Precision-Balanced Construction – Designed for smooth operation and easier maneuverability across the floor.

• Chrome-Plated Steel Skirt – Adds durability around the machine base for repeated commercial use.

• Mechanical Safety Lock-Out – Helps prevent accidental machine starts during setup, handling, and storage.

• 58 dB(A) Sound Level – Supports relatively quiet operation in commercial and institutional environments.

• Economical Commercial Design – Combines multiple floor-care functions in one durable machine.

The NSS Galaxy 17DS 17-Inch Dual-Speed Floor Machine N0302017 provides greater versatility than a traditional single-speed floor machine by allowing the operator to select between 180 RPM and 300 RPM.

The lower speed is designed for more aggressive procedures such as scrubbing and stripping, while the higher setting is useful for polishing and carpet bonnet cleaning.

With a 1.5 HP motor, 17-inch working width, and precision-balanced design, the Galaxy 17DS is a practical choice for facilities that want one machine capable of handling a broad range of floor-care tasks.

Dual-Speed 180/300 RPM Operation

The defining feature of the Galaxy 17DS is its two-speed operation.

The operator can switch between:

• 180 RPM for scrubbing, stripping, and general low-speed floor care

• 300 RPM for polishing and carpet bonnet cleaning

This added flexibility allows one machine to handle tasks that would otherwise require separate low- and higher-speed floor machines.

1.5 HP Commercial Motor

The Galaxy 17DS uses a 1.5 HP / 1110-watt motor.

The heavy-duty motor provides dependable power for repeated commercial applications ranging from aggressive stripping to routine polishing.

17-Inch Working Width

The 17-inch / 43 cm working width provides a useful balance between productivity and maneuverability.

Its compact size allows the Galaxy 17DS to work effectively in:

• Hallways

• Classrooms

• Offices

• Retail areas

• Patient rooms

• Hospitality spaces

• Other commercial environments

Precision-Balanced Design

The Galaxy is precision balanced to provide smooth, predictable handling.

Proper balance helps the operator guide the machine from side to side with less effort during extended floor-maintenance procedures.

Durable Steel Skirt

A chrome-plated steel skirt surrounds the machine base.

This provides added durability in an area commonly exposed to contact with walls, furniture, fixtures, and other obstacles.

Mechanical Safety Lock-Out

A mechanical lock-out switch helps prevent accidental machine startup.

This adds an important measure of safety during setup, handling, transport, and storage.

Quiet Commercial Operation

The Galaxy operates at approximately 58 dB(A).

Its relatively low sound level can be useful in schools, healthcare facilities, offices, and other environments where cleaning may occur during occupied hours.

Professional Applications

The NSS Galaxy 17DS is well suited for:

• Schools and universities

• Hospitals and healthcare facilities

• Office buildings

• Retail stores

• Hospitality environments

• Government facilities

• Commercial cleaning contractors

• Finished hard floors

• Carpet bonnet cleaning

• Carpet shampooing with appropriate accessories

Specifications

Specification	Details
Model	NSS Galaxy 17DS
Catalog Number	N0302017
Product Type	Dual-Speed Single-Disc Floor Machine
Working Width	17 in. / 43 cm
Pad Speed	180 / 300 RPM
Speed Type	Dual Speed
Motor	1.5 HP / 1110 W
Voltage	120V
Frequency	50/60Hz
Sound Level	58 dB(A)
Base Construction	Chrome-Plated Steel Skirt
Safety Lock-Out	Mechanical
Power Source	Corded Electric

Applications

• Scrubbing

• Stripping

• Spray Buffing

• Polishing

• Carpet Bonnet Cleaning

• Carpet Shampooing

Product Resources

Download Galaxy Floor Machine Specification Sheet

Download Galaxy 17/20 Operation Manual

Download Galaxy DS Parts List
