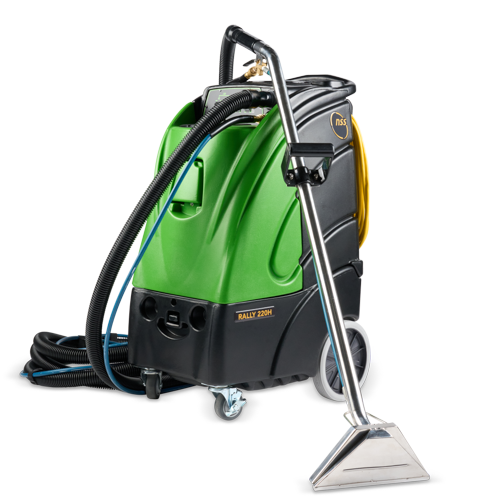

NSS RALLY 220H Extractor -120V-W/2JET SS WAND 4002206
The NSS Rally 220H adds onboard heated extraction to the Rally platform, delivering 220 PSI cleaning pressure and solution temperatures up to 190°F for demanding professional carpet cleaning.
Features:
-
Onboard 2000-Watt Heat System – The key upgrade over the standard Rally 220, heating cleaning solution for more aggressive soil removal.
-
Up to 190°F Solution Temperature – Hot-water extraction helps loosen oily soils and improve the effectiveness of compatible carpet-cleaning chemicals.
-
220 PSI Cleaning Pressure – Delivers strong solution pressure for deep commercial carpet extraction.
-
2-Jet Stainless-Steel Wand Included – Durable professional wand provides even solution application and dependable recovery.
-
12-Gallon Tank Capacity – Supports larger cleaning jobs with fewer refill stops.
-
Built-In Circuit Detection – Helps operators verify electrical setup and manage the heated extractor more efficiently.
-
12-Inch Working Width – Balances productivity with maneuverability for rooms, hallways, and detailed commercial work.
-
75 dBA Sound Level – Designed for professional cleaning environments.
-
Service-Friendly Tilt-Back Tank Design – Removing a single bolt allows the tanks to tilt back for easier access to internal components.
-
Optional Upholstery & Stair Tools – Expands the machine beyond open-floor carpet cleaning.
-
Optional Hydroglide Carpet Wand – Additional wand option available for specialized extraction work.
-
Commercial 120V Operation – Designed for professional facilities, restoration work, and contract cleaning.
-
Built for Deep Restorative Cleaning – Well suited for heavily soiled carpet and high-traffic commercial areas.
The NSS Rally 220H Carpet Extractor 4002206 is the heated version of the Rally 220 platform, designed for professional cleaners who want the added cleaning power of hot-water extraction.
It retains the same 220 PSI solution pressure, 12-gallon capacity, stainless-steel 2-jet wand, and service-friendly construction as the standard Rally 220, but adds a 2000-watt heating system capable of producing solution temperatures up to 190°F / 88°C.
That makes the Rally 220H particularly useful for restorative cleaning, greasy or oily soil, and commercial carpet that requires more than routine extraction.
2000-Watt Onboard Heat
The defining advantage of the Rally 220H is its built-in heating system.
The extractor uses 2000 watts of heating power to raise solution temperature during operation.
Heated solution can help:
-
Loosen oily and greasy soil
-
Improve cleaning-chemical performance
-
Break the bond between soil and carpet fibers
-
Support more effective restorative cleaning
For facilities with heavily used carpet, onboard heat can provide a meaningful advantage over cold-water extraction.
Up to 190°F Solution Temperature
The Rally 220H can deliver cleaning solution at temperatures up to approximately 190°F / 88°C.
Hot-water extraction is especially valuable in demanding applications where soil has become deeply embedded in the carpet.
Actual solution temperature can vary with incoming water temperature, flow rate, operating conditions, and machine setup.
220 PSI Cleaning Pressure
The Rally 220H delivers approximately 220 PSI of solution pressure.
That pressure helps distribute hot cleaning solution deep into the carpet fibers so soil can be loosened and recovered.
The combination of heat and pressure gives the 220H a strong advantage for restorative work.
2-Jet Stainless-Steel Wand Included
This configuration includes a stainless-steel carpet wand with two solution jets.
The dual-jet setup helps provide even solution coverage across the cleaning path while the durable stainless-steel construction is built for repeated commercial use.
12-Gallon Tank Capacity
The Rally 220H provides approximately 12 gallons / 45 liters of tank capacity.
The larger capacity reduces the number of times the operator needs to stop for refilling during extended carpet-cleaning jobs.
Built-In Circuit Detection
Because the Rally 220H includes a high-output heater system, proper electrical setup is especially important.
Built-in circuit detection helps operators confirm the electrical configuration and avoid wasting time during setup.
This is a particularly useful feature for professional cleaners working in unfamiliar buildings.
12-Inch Working Width
The included carpet wand provides approximately a 12-inch working width.
This gives the Rally 220H enough width for productive commercial cleaning while remaining maneuverable in:
-
Hotel rooms
-
Offices
-
Hallways
-
Classrooms
-
Apartments
-
Healthcare rooms
-
Other commercial spaces
Easy Maintenance Access
NSS designed the Rally platform to make service access straightforward.
After removing a single bolt, the tank assembly can tilt backward to expose the internal components.
This makes it easier for technicians to access:
-
Heating components
-
Pumps
-
Hoses
-
Plumbing
-
Electrical components
-
Other service items
Simplified access can reduce downtime and make long-term maintenance easier.
Heated Extraction for Difficult Soil
The Rally 220H is especially useful for demanding carpet-cleaning applications involving:
-
Heavy traffic lanes
-
Greasy soil
-
Oily residues
-
Food-service environments
-
Hospitality carpet
-
Restorative commercial cleaning
-
Heavily used public spaces
Hot solution helps cleaning chemistry work more effectively before the soil and moisture are recovered through the wand.
Optional Cleaning Tools
Additional Rally accessories are available for specialized cleaning, including:
-
Hydroglide Carpet Wand
-
Upholstery Tool
-
Stair Cleaning Tool
These options allow the same extractor to be used for a broader range of professional cleaning tasks.
Specifications
| Specification | Details |
|---|---|
| Model | NSS Rally 220H |
| Item Number | 4002206 |
| Product Type | Heated Portable Commercial Carpet Extractor |
| Extraction Type | Heated |
| Heater Power | 2000 Watts |
| Maximum Solution Temperature | Up to 190°F / 88°C |
| Spray Pressure | 220 PSI |
| Tank Capacity | 12 gal. / 45 L |
| Working Width | 12 in. / 30 cm |
| Included Wand | 2-Jet Stainless-Steel Wand |
| Sound Level | 75 dBA |
| Built-In Circuit Detection | Yes |
| Service Access | Tilt-Back Tank Design |
| Power | 120V |
| Optional Upholstery Tool | Available |
| Optional Stair Tool | Available |
| Optional Hydroglide Wand | Available |
Included
-
NSS Rally 220H Heated Carpet Extractor
-
2-Jet Stainless-Steel Carpet Wand
