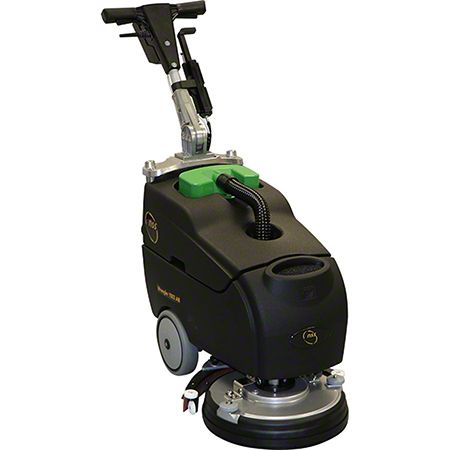

The NSS Wrangler 1503 AB is a compact 15-inch battery-powered walk-behind scrubber with pad-assisted drive, 3.7-gallon solution capacity, 4.2-gallon recovery capacity, and one-pass water recovery for faster, more effective cleaning than traditional mopping.

Features:

• Battery-Powered Operation – Provides cordless cleaning freedom without managing a power cord around furniture, doorways, and occupied areas.

• 15-Inch Cleaning Path – Compact size makes it easy to maneuver in restrooms, kitchens, classrooms, offices, and other tight commercial spaces.

• Pad-Assisted Drive – Uses the scrub head’s rotation to help move the machine forward, reducing operator effort without the complexity of a full traction-drive system.

• 3.7-Gallon Solution Tank – Provides enough cleaning solution for small to medium cleaning routes while keeping the machine compact.

• 4.2-Gallon Recovery Tank – Collects dirty solution as the machine cleans for one-pass scrubbing and recovery.

• 65 dB(A) Sound Level – Supports cleaning in many occupied or noise-sensitive commercial environments.

• Up to 11,210 sq. ft./hr. Productivity – Cleans substantially faster than traditional mop-and-bucket methods.

• One-Pass Scrubbing and Recovery – Removes soil and picks up dirty solution instead of spreading contaminated water across the floor.

• Faster Than Mopping – NSS states that the Wrangler 1503 can clean approximately 50%-75% faster than traditional mopping.

• Reduced Drying Time – Recovers water while cleaning instead of leaving the floor to air-dry.

• Compact Mini-Scrubber Design – Ideal for areas too small for larger walk-behind machines but too large for efficient manual mopping.

The NSS Wrangler 1503 AB is designed for facilities that need the cleaning performance of an automatic scrubber in a compact, easy-to-maneuver package.

Unlike the corded Wrangler 1503 AE, the 1503 AB is battery powered, allowing unrestricted movement through smaller commercial spaces without having to relocate a power cord.

Battery-Powered Cleaning

The Wrangler 1503 AB operates from battery power, making it especially practical in areas with:

• Limited electrical outlets

• Multiple rooms or doorways

• Furniture and fixtures

• Customer or pedestrian traffic

• Cleaning routes where cord management would slow the operator down

Cordless operation allows the machine to move freely from one area to another.

Pad-Assisted Drive

The 1503 AB uses a pad-assisted drive system rather than a powered traction motor.

As the scrub head rotates, it helps pull the machine forward and reduces the amount of pushing required from the operator.

This provides a useful balance between simplicity, maneuverability, and operator comfort.

15-Inch Cleaning Path

The compact 15-inch / 38 cm cleaning width makes the Wrangler especially effective in areas where larger scrubbers are difficult to use.

Typical applications include:

• Restrooms

• Kitchens

• Cafeterias

• Small retail areas

• Classrooms

• Offices

• Entryways

• Healthcare spaces

• Hallways

• Break rooms

3.7-Gallon Solution Tank

The machine carries up to 3.7 gallons / 14 liters of cleaning solution.

This capacity supports productive cleaning while keeping the machine small enough for tight spaces and easy transport.

4.2-Gallon Recovery Tank

A 4.2-gallon / 16-liter recovery tank collects dirty cleaning solution as the machine moves across the floor.

The slightly larger recovery capacity helps provide room for recovered water and soil during operation.

Faster Than Traditional Mopping

NSS states that the Wrangler 1503 can clean approximately 50%-75% faster than mopping.

An automatic scrubber combines:

• Solution application

• Mechanical scrubbing

• Soil removal

• Water recovery

into a single cleaning process.

Removes Soil Instead of Spreading It

Traditional mopping can redistribute dirty solution across the floor.

The Wrangler applies cleaning solution, mechanically agitates the floor, and then recovers the dirty water into a separate tank.

This provides more consistent cleaning results than simply moving mop water from one section of floor to another.

Helps Floors Dry Faster

Because the machine recovers water during the cleaning pass, less moisture is left behind to evaporate.

Faster drying can help reduce the amount of time an area must remain out of service after cleaning.

65 dB(A) Operation

The Wrangler 1503 operates at approximately 65 dB(A).

Its relatively low operating noise makes it suitable for many daytime and occupied-facility cleaning applications.

Professional Applications

The NSS Wrangler 1503 AB is well suited for:

• Schools and classrooms

• Restaurants

• Kitchens and cafeterias

• Healthcare facilities

• Assisted living facilities

• Retail stores

• Offices

• Restrooms

• Hotels

• Small commercial facilities

• Areas currently maintained with a mop and bucket

Specifications

Specification	Details
Model	NSS Wrangler 1503 AB
Product Type	Battery-Powered Mini Walk-Behind Floor Scrubber
Cleaning Path	15 in. / 38 cm
Drive System	Pad Assisted
Power Source	Battery
Solution Tank	3.7 gal. / 14 L
Recovery Tank	4.2 gal. / 16 L
Productivity	Up to 11,210 sq. ft./hr.
Sound Level	65 dB(A)
Cleaning Method	Scrub and Recover
Cordless Operation	Yes
