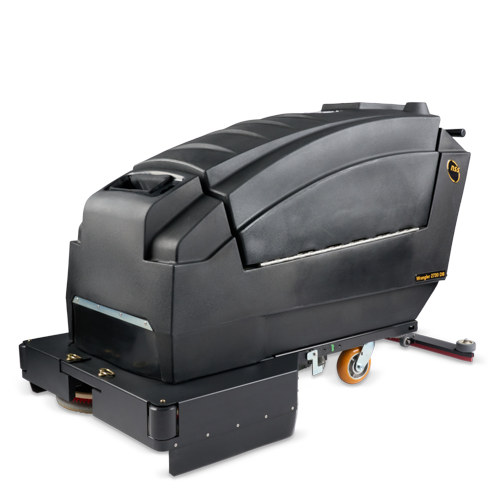

The NSS Wrangler 3330 DB 3302204 is a 33-inch traction-drive walk-behind automatic scrubber with a 235Ah ST battery configuration, 30-gallon solution tank, 32-gallon recovery tank, and included squeegee assembly for productive large-area commercial floor cleaning. This configuration is supplied without an onboard charger and without a pad driver.

Features:

• 235Ah ST Battery Configuration – Provides substantial battery capacity for extended commercial cleaning routes.

• No Onboard Charger – This configuration is supplied without an onboard charger, allowing compatible charging equipment to be selected separately.

• No Pad Driver Included – Pad driver must be selected separately if pad-based cleaning is desired.

• 33-Inch Cleaning Path – The wider Wrangler 3330 platform covers more floor per pass for improved productivity in large facilities.

• Traction-Drive Operation – Powered drive reduces operator effort and helps maintain a consistent cleaning pace across large areas.

• Squeegee Assembly Included – Recovers spent cleaning solution behind the scrub deck for efficient one-pass cleaning.

• 30-Gallon Solution Tank – Supports long cleaning cycles with fewer refill stops.

• 32-Gallon Recovery Tank – Provides generous capacity for collected cleaning solution and soil.

• Up to 4 Hours of Runtime – Designed for extended cleaning shifts depending on battery condition and operating conditions.

• Up to 44,100 sq. ft./hr. Family Productivity – Built for efficient cleaning of large commercial and light-industrial floor areas.

• 62 dB(A) Sound Level – Supports cleaning in many occupied commercial and institutional environments.

• Simple Mechanical Controls – Straightforward switches and levers help reduce operator training time.

• Rugged Commercial Construction – Built to withstand repeated daily use in demanding facilities.

• Large-Tank Efficiency – Helps reduce downtime spent traveling to refill or drain the machine.

• Commercial Hard-Floor Versatility – Designed to perform well on vinyl, terrazzo, tile, and other compatible hard-floor surfaces.

• TASKI IntelliPod Compatibility – Can be paired with compatible IntelliPods for simplified chemical dosing and floor-care programs.

The NSS Wrangler 3330 DB, catalog number 3302204, combines the wider 33-inch Wrangler cleaning platform with powered traction drive and a 235Ah ST battery configuration for efficient large-area floor care.

This configuration includes the 235Ah ST battery package and squeegee assembly, while the onboard charger and pad driver are left out so the machine can be configured around existing or separately selected charging and pad-driving equipment.

235Ah ST Battery Configuration

This model is equipped with a 235Ah ST battery configuration.

The battery package is designed to support extended commercial cleaning routes and reduce interruptions for recharging.

Actual operating time will vary with:

• Battery condition

• Floor conditions

• Brush pressure

• Travel speed

• Vacuum use

• Operator technique

No Onboard Charger

This configuration is designated without an onboard charger.

A compatible charging solution must be provided separately.

This can be useful for facilities that:

• Already have compatible charging equipment

• Prefer a separate shelf charger

• Standardize chargers across a machine fleet

• Do not require an onboard charger installed on the scrubber

No Pad Driver Included

This configuration is also supplied without a pad driver.

A compatible pad driver must be selected separately if the machine will be used with floor pads.

This allows the customer to tailor the scrubber to the exact accessory package required for the application.

33-Inch Cleaning Path

The Wrangler 3330 DB provides a 33-inch / approximately 84 cm cleaning path.

Compared with the 27-inch Wrangler 2730, the wider deck covers more floor with every pass and is especially useful in large open areas.

Traction-Drive Operation

The DB model uses powered traction drive.

Instead of requiring the operator to push the full weight of the machine, the drive system helps propel the scrubber forward.

This can:

• Reduce operator fatigue

• Improve comfort on longer routes

• Maintain a more consistent cleaning pace

• Improve productivity across large facilities

Squeegee Assembly Included

The included squeegee assembly collects spent cleaning solution behind the scrub deck.

This allows the machine to scrub and recover water during the same pass, helping leave floors cleaner and drier.

30-Gallon Solution Tank

The Wrangler 3330 carries up to 30 gallons / 114 liters of cleaning solution.

The large capacity helps reduce refill stops during extended cleaning routes.

32-Gallon Recovery Tank

A 32-gallon / 125-liter recovery tank collects dirty solution and soil during operation.

The slightly larger recovery capacity provides additional room for collected liquid throughout the cleaning cycle.

Up to 4 Hours of Runtime

The Wrangler 2730/3330 family is designed for up to approximately 4 hours of runtime under suitable conditions.

Actual operating time depends on the specific battery configuration and machine usage.

High-Productivity Cleaning

The Wrangler 2730/3330 family is rated for approximately 25,800 to 44,100 square feet per hour of productivity.

The wider 33-inch platform is designed to maximize coverage in large, open commercial spaces.

Simple Operator Controls

The Wrangler uses straightforward switches and mechanical levers.

This helps simplify training and allows new operators to become familiar with the machine quickly.

Rugged Commercial Construction

The Wrangler 3330 DB is built for repeated professional use.

Its durable construction makes it a strong fit for facilities where the machine may be used daily on demanding cleaning routes.

62 dB(A) Operation

The Wrangler 2730/3330 family operates at approximately 62 dB(A).

This controlled sound level supports use in many occupied commercial and institutional facilities.

Hard-Floor Versatility

The Wrangler 3330 DB is designed for common commercial hard-floor surfaces including:

• Vinyl

• Terrazzo

• Tile

• Other compatible resilient and hard flooring

TASKI IntelliPod Compatibility

The Wrangler platform can be paired with compatible TASKI IntelliPods.

These systems can help simplify chemical dosing and improve consistency across facility floor-care programs.

Professional Applications

The NSS Wrangler 3330 DB is well suited for:

• Large retail stores

• Hospitals and healthcare facilities

• Hotels and hospitality facilities

• Schools and universities

• Warehouses

• Government buildings

• Light industrial facilities

• Commercial cleaning contractors

• Large commercial hard-floor areas

Specifications

Specification	Details
Model	NSS Wrangler 3330 DB
Catalog Number	3302204
Product Type	Traction-Drive Walk-Behind Automatic Floor Scrubber
Cleaning Path	33 in. / approx. 84 cm
Drive System	Powered Traction Drive
Battery Capacity	235Ah
Battery Configuration	ST
Onboard Charger	Not Included
Pad Driver	Not Included
Squeegee Assembly	Included
Solution Tank	30 gal. / 114 L
Recovery Tank	32 gal. / 125 L
Run Time	Up to 4 Hours, Depending on Configuration and Conditions
Productivity	Wrangler 2730/3330 Family: Approx. 25,800-44,100 sq. ft./hr.
Sound Level	62 dB(A)
IntelliPod Compatibility	Yes

Included

• NSS Wrangler 3330 DB Walk-Behind Auto Scrubber

• 235Ah ST Battery Configuration

• Squeegee Assembly

Onboard battery charger and pad driver are not included with this configuration.

Product Resources

Download Wrangler 2730/3330 Spec Sheet

Download Wrangler 2730/3330 Operation Manual

Download Wrangler 2730/3330 Parts List
