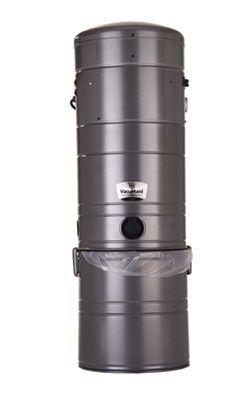

The VacuMaid SR60 delivers powerful whole-home central vacuum performance with cyclonic filtration, a massive 38-quart collection capacity, and durable American-made steel construction for very large homes.

The VacuMaid SR60 delivers powerful whole-home central vacuum performance with cyclonic filtration, a massive 38-quart collection capacity, and durable American-made steel construction for very large homes.

Features:

• Built for Very Large Homes – Designed for large central vacuum installations with coverage up to approximately 12,500 square feet.
• 760 Max Air Watts – Delivers strong cleaning performance throughout extensive central vacuum piping systems.
• 150-Inch Water Lift – Provides powerful suction for carpets, hard floors, upholstery, garages, and whole-home cleaning.
• 137 CFM Airflow – Moves a high volume of air to efficiently transport dirt and debris through the central vacuum system.
• 8.4-Inch 2-Stage By-Pass Motor – Heavy-duty motor design separates motor-cooling air from dirty vacuum airflow for dependable performance.
• Cyclonic Filtration – Uses centrifugal airflow to separate dirt and debris from the incoming air stream.
• Multiple Collection Options – Use the system as a pure-dump cyclonic unit or add a compatible HEPA-style filtration bag or can liner for easier disposal.
• Large 38-Quart Capacity – Holds a substantial amount of dirt and debris between emptying intervals.
• Galvannealed Steel Construction – Durable steel body is designed for long-term strength and corrosion resistance.
• Powder-Coated Exterior – Adds another layer of protection for years of dependable installation.
• Tangential Exhaust – Directs exhaust air efficiently away from the motor and collection chamber.
• Right or Left Intake Installation – Provides more flexibility when positioning the power unit in garages, basements, utility rooms, or mechanical areas.
• Built-In Utility Valve – Allows a vacuum hose to connect directly at the power unit for convenient nearby cleaning.
• 120-Volt Operation – Designed for standard 120-volt electrical installation.
• 68 dB Sound Level – Provides powerful central vacuum performance while keeping the main motor noise away from living areas.
• 10-Year Warranty – Backed by VacuMaid’s long-term warranty coverage.
• Made in the USA – Manufactured by Lindsay Manufacturing in Ponca City, Oklahoma, a company producing central vacuum systems since 1956.

The VacuMaid SR60 is built for customers who need serious central vacuum performance in a large home, estate, or extensive residential installation.

A powerful 8.4-inch two-stage bypass motor produces up to 760 air watts, 150 inches of water lift, and 137 CFM of airflow, giving the SR60 the suction and airflow needed to move dirt through long piping runs while maintaining strong cleaning performance at the hose.

Its large 38-quart collection capacity reduces the frequency of emptying, while the cyclonic separation system gives customers flexibility in how they want to collect and dispose of debris.

The SR60 can operate as a traditional pure-dump cyclonic system or be configured with a compatible filtration bag or can liner for customers who prefer cleaner, more contained disposal.

Built from powder-coated galvannealed steel and manufactured in Oklahoma, the SR60 is designed for customers who want a central vacuum power unit built for long-term service rather than disposable appliance construction.

Powerful Whole-Home Performance

Central vacuum systems have to do more than produce strong suction at the motor.

They need enough airflow and vacuum pressure to move debris through long runs of tubing while still providing effective cleaning at the end of the hose.

The SR60 produces up to:

• 760 Max Air Watts
• 150 Inches of Water Lift
• 137 CFM of Airflow

This combination gives the system the performance needed for large residential installations with extensive piping networks.

8.4-Inch Two-Stage By-Pass Motor

The SR60 uses a large 8.4-inch two-stage bypass motor.

A bypass motor uses separate airflow for motor cooling instead of relying on the dirty air being pulled through the vacuum system.

This type of motor construction is commonly used in heavy-duty central vacuum applications where durability and sustained performance are important.

Cyclonic Filtration

The SR60 uses cyclonic separation to remove dirt from the incoming airflow.

As debris enters the power unit, centrifugal force helps separate heavier dirt and debris from the air stream and directs it into the collection bucket.

This straightforward system provides strong airflow while keeping routine maintenance relatively simple.

Flexible Collection Options

Different customers prefer different ways of emptying a central vacuum.

The SR60 offers several collection choices:

• Pure Dump Cyclonic – Empty collected debris directly from the bottom bucket.
• Filtration Bag – Use a compatible multi-layer filtration bag for more contained dirt disposal.
• Can Liner – Install a liner inside the collection bucket for easier cleanup.

This flexibility allows the system to be configured around the homeowner’s preferred maintenance routine.

Large 38-Quart Collection Capacity

The SR60 provides a substantial 38-quart dirt capacity.

Central vacuum systems already require less frequent emptying than portable household vacuums, and the SR60’s large collection chamber extends that advantage even further.

For large homes, families, and frequent vacuuming, this means fewer interruptions for routine dirt disposal.

Durable Steel Construction

VacuMaid builds its central vacuum power units differently from many lightweight plastic appliances.

The SR60 uses rolled galvannealed steel construction with a durable powder-coated finish.

Galvannealed steel provides strength and corrosion resistance, while the powder coating protects the exterior and gives the unit a clean finished appearance.

The result is a central vacuum power unit designed to remain permanently installed and provide years of service.

Tangential Exhaust

The SR60 uses a tangential exhaust design to direct motor exhaust away from the unit.

When installation conditions allow, central vacuum exhaust can also be routed away from occupied living spaces, helping keep motor noise and exhaust air concentrated at the power-unit location rather than inside the home.

Flexible Right or Left Intake

The vacuum intake can be configured on either the right or left side of the power unit.

That gives installers more freedom when routing central vacuum tubing and positioning the SR60 in a garage, basement, utility room, or mechanical area.

More installation flexibility can result in cleaner piping layouts and easier service access.

Built-In Utility Valve

A utility valve is built directly into the power unit.

Connect a compatible vacuum hose at the SR60 itself for convenient cleaning around the installation area.

This is especially useful when the power unit is located in a garage, workshop, basement, or utility room where nearby cleaning may be needed.

Made in Oklahoma

VacuMaid central vacuum systems are manufactured by Lindsay Manufacturing in Ponca City, Oklahoma.

The company has produced central vacuum systems since 1956, with an emphasis on durable metal construction and serviceable designs intended for permanent installation.

Specifications

Collection Options

• Pure-Dump Cyclonic Collection
• Compatible Multi-Layer Filtration Bag
• Can Liner
