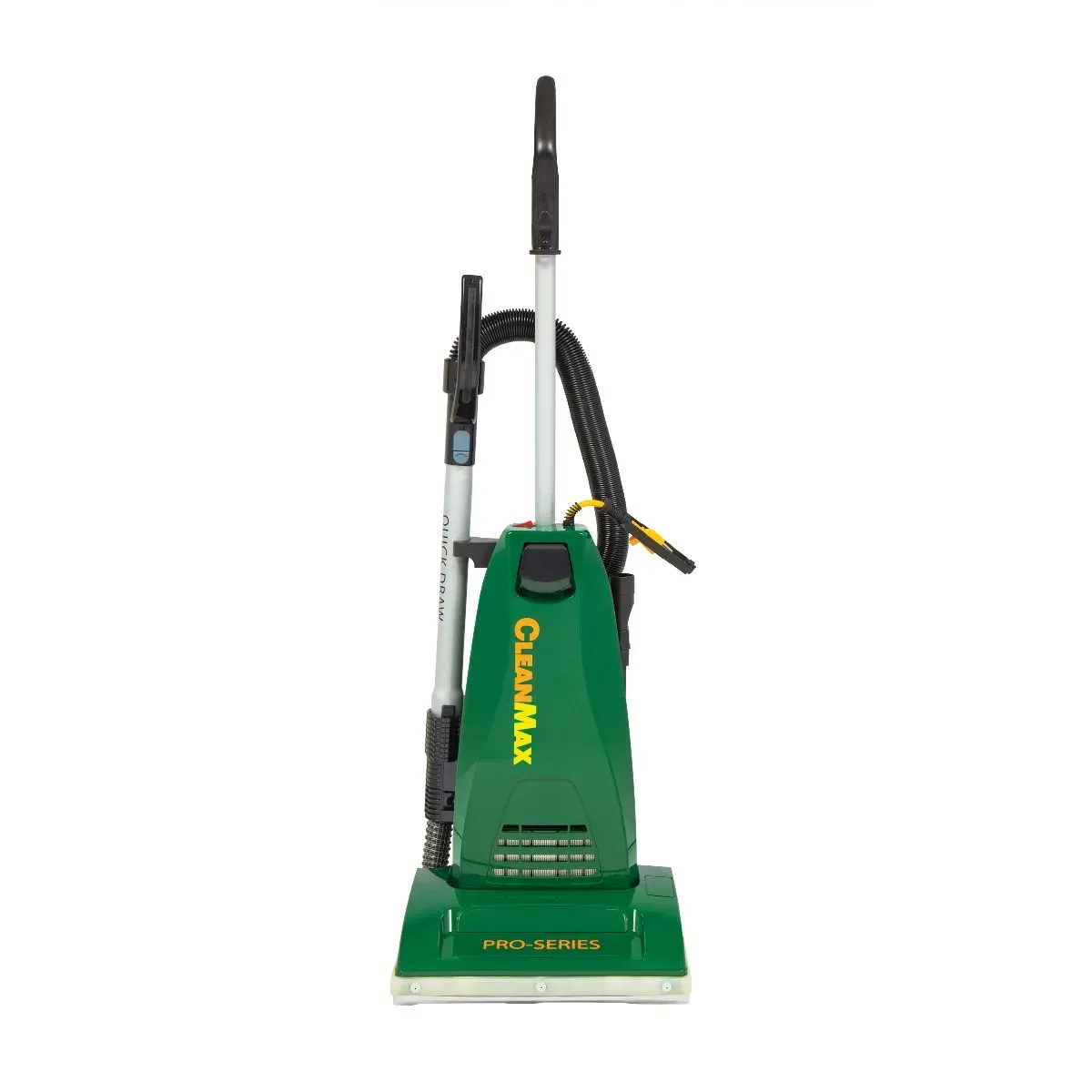

The CleanMax Pro-Series CMP-3QD is a durable 14-inch commercial upright vacuum with a 10-amp 2-stage motor, HEPA media filtration, automatic height adjustment, front and side edge cleaning, a Quick Draw onboard tool system, and heavy-duty metal components for professional daily use.

Features:

• 10-Amp 2-Stage Commercial Motor – Provides strong cleaning performance for routine commercial carpet care.

• Thermal and Pressure-Activated Motor Protection – Helps protect the motor if airflow becomes restricted or operating temperatures rise.

• HEPA Media Bag and Filter – Helps capture fine dust and debris while providing convenient bagged disposal.

• 14-Inch Cleaning Nozzle – Provides a productive cleaning width for commercial carpeted areas.

• Quick Draw Onboard Tool System – Keeps above-floor cleaning tools immediately accessible without interrupting the cleaning routine.

• Aluminum Telescopic Wand – Provides durable, lightweight above-floor cleaning capability.

• Up to 12-Foot Cleaning Reach – Helps reach high, low, and hard-to-access areas.

• Automatic Height Adjustment – Automatically adapts the cleaning head for compatible carpet surfaces.

• Metal Brushroll with Replaceable Bearings – Durable commercial design helps reduce long-term service costs.

• Ball-Bearing Brushroll Support – Promotes smooth brushroll operation.

• Metal Handle Tube – Adds durability in a high-use area.

• Metal Bottom Plate – Reinforces the underside of the vacuum for commercial use.

• Metal Cord Hook – Provides added durability during repeated cord storage.

• Two 30-Foot Commercial-Grade Cords – Includes a spare cord for faster replacement if one becomes damaged.

• 6.5-Inch Pigtail Cord Connection – Allows quick cord replacement without major machine disassembly.

• Front and Side Edge Cleaning – Helps clean close to walls, baseboards, and furniture.

• Rubber Wheels – Supports smooth maneuverability while helping protect finished floors.

• Riveted Furniture Guard – Helps protect the vacuum nozzle and surrounding furnishings.

• Less Than 1-Lb. Handle Weight – Reduces handle effort during extended cleaning.

• 107 CFM Airflow – Provides strong airflow for commercial vacuuming.

• LEED Qualifying – Designed to meet applicable criteria for qualifying green-building cleaning programs.

• ETL Approved – Tested to applicable electrical safety standards.

The CleanMax Pro-Series CMP-3QD is designed for commercial users who need a rugged upright vacuum with fast access to above-floor tools.

Its combination of metal construction, HEPA filtration, Quick Draw tools, automatic height adjustment, and replaceable commercial cords makes it well suited for janitorial departments, schools, hotels, offices, and professional cleaning contractors.

Quick Draw Tool System

The CMP-3QD features CleanMax’s Quick Draw system, designed to make above-floor cleaning faster and more convenient.

The wand and hose can be accessed quickly without significantly interrupting the operator’s normal floor-cleaning workflow.

Aluminum Telescopic Wand

The onboard telescopic wand is constructed from aluminum for a combination of strength and lighter weight.

Combined with the hose system, it provides up to approximately 12 feet of cleaning reach for:

• Corners

• Baseboards

• Furniture

• Shelving

• Ceiling edges

• Other above-floor areas

10-Amp 2-Stage Motor

The CMP-3QD uses a 10-amp capped 2-stage motor designed for commercial vacuuming.

The motor is protected by both thermal and pressure-activated safeguards.

Thermal and Pressure-Activated Motor Protection

If airflow becomes restricted or operating temperature rises too high, the protection system can stop the motor to help prevent damage.

Potential causes can include:

• A full vacuum bag

• A clogged hose

• A blocked airway

• A dirty filter

• Restricted airflow

HEPA Media Bag and Filter

The CMP-3QD uses both a HEPA media bag and a HEPA media filter.

This provides multiple stages of filtration while keeping debris contained in a disposable bag.

14-Inch Cleaning Nozzle

The vacuum features a 14-inch nozzle for productive commercial carpet cleaning.

The wider path is especially useful for:

• Hallways

• Classrooms

• Offices

• Guest rooms

• Retail spaces

• Commercial carpeted areas

Automatic Height Adjustment

The CMP-3QD automatically adjusts the cleaning head to maintain suitable brush contact with compatible carpet surfaces.

This removes the need for the operator to manually change height settings as often.

Metal Brushroll with Replaceable Bearings

This model upgrades the brushroll to a metal design with replaceable bearings.

The serviceable construction helps extend component life and can reduce the need to replace the entire brushroll when individual wear components require attention.

Durable Commercial Construction

The Pro-Series CMP-3QD uses metal components in several high-use areas, including:

• Metal handle tube

• Metal bottom plate

• Metal cord hook

• Metal brushroll

This reinforces the vacuum for repeated professional use.

Replaceable Pigtail Cord System

The CMP-3QD includes two 30-foot commercial-grade cords that connect through a 6.5-inch pigtail.

If one cord becomes damaged, it can be replaced quickly without extensive disassembly.

The included spare cord helps reduce downtime.

Front and Side Edge Cleaning

The cleaning head provides front and side edge-cleaning capability.

This helps improve pickup near:

• Walls

• Baseboards

• Furniture

• Room perimeters

• Stationary fixtures

Lightweight Handle Feel

The handle weight is listed at less than 1 lb.

This helps reduce operator effort during extended commercial cleaning sessions.

Professional Applications

The CleanMax Pro-Series CMP-3QD is well suited for:

• Schools

• Hotels

• Offices

• Churches

• Retail stores

• Healthcare facilities

• Property management

• Janitorial departments

• Commercial cleaning contractors

• Carpeted hallways

• Classrooms

• Guest rooms

• Office spaces

• General commercial carpet maintenance

Specifications

Specification	Details
Model	CleanMax Pro-Series Quick Draw
Model Number	CMP-3QD
SKU	CMP-3QD
UPC	098612039532
Product Type	Commercial Upright Vacuum
Cleaning Width	14 in.
Motor	10 Amps, Capped, 2-Stage
Motor Protection	Thermal and Pressure Activated
Airflow	107 CFM
Filtration	HEPA Media Bag and Filter
Height Adjustment	Automatic
Brushroll	Metal
Brushroll Bearings	Replaceable / Ball Bearing
Handle Tube	Metal
Bottom Plate	Metal
Cord Hook	Metal
Edge Cleaning	Front and Side
Power Cord	Two 30-Foot Commercial-Grade Cords
Pigtail Length	6.5 in.
Tool System	Quick Draw
Wand	Aluminum Telescopic
Cleaning Reach	Up to 12 ft.
Wheels	Rubber
Nozzle	14 in. with Riveted Bumper
Handle Weight	Less Than 1 lb.
Machine Weight	Approx. 15.2 lbs.
Belt Protection	None
LEED Qualifying	Yes
ETL Approved	Yes
Warranty	1 Year

Included

• CleanMax Pro-Series CMP-3QD Commercial Upright Vacuum

• HEPA Media Bag

• HEPA Media Filter

• Quick Draw Tool System

• Aluminum Telescopic Wand

• Stretch Hose

• Onboard Cleaning Tools

• Two 30-Foot Commercial-Grade Power Cords

• 6.5-Inch Pigtail Cord Connection

• Metal Brushroll

Optional / Recommended Accessories

• Genuine CleanMax Replacement HEPA Media Bags

• Replacement HEPA Media Filter

• Replacement Brushroll Bearings

• Replacement Belt

• Replacement Commercial Power Cord

• Compatible CleanMax Quick Draw Tools and Accessories
