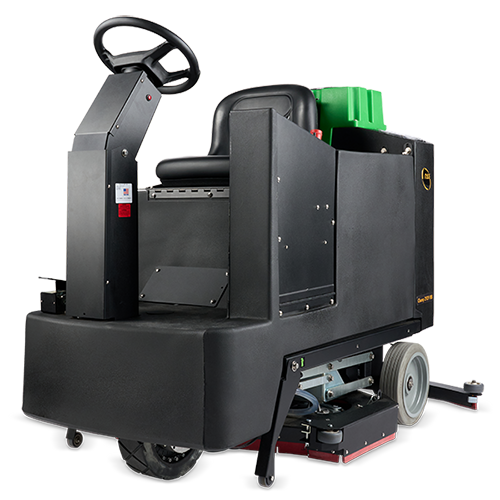

The NSS CHAMP 3529 7603591 is a 35-inch ride-on automatic scrubber with 29-gallon solution and recovery tanks, a 36V electrical system, 235Ah wet batteries, onboard charging, pad drivers, and a squeegee assembly for high-productivity commercial floor cleaning.

Features:

• 35-Inch Cleaning Path – The key upgrade over the CHAMP 2929, providing a wider scrub path for greater productivity in large facilities.

• 235Ah Wet Battery Package – Uses serviceable flooded lead-acid batteries for dependable commercial runtime.

• 36V Electrical System – Provides strong ride-on performance and up to approximately 30% more runtime than a comparably configured 24V machine.

• Universal Onboard Battery Charger – Allows convenient charging anywhere an appropriate electrical outlet is available.

• Pad Drivers Included – Comes equipped for use with compatible floor pads.

• Squeegee Assembly Included – Recovers spent cleaning solution behind the scrub deck for efficient one-pass cleaning.

• 29-Gallon Solution Tank – Supports long cleaning cycles with fewer refill stops.

• 29-Gallon Recovery Tank – Provides matching recovery capacity for extended floor-cleaning routes.

• Up to 4 Hours of Runtime – Designed for extended commercial cleaning shifts, depending on operating conditions and battery condition.

• Up to 47,800 sq. ft./hr. Productivity – The wider CHAMP 3529 platform is designed for fast coverage of large floor areas.

• Tight 67-70-Inch Turning Requirement – Single front-drive wheel turns 90 degrees in both directions for impressive maneuverability.

• 1 HP Drive Motor – Provides dependable powered traction across large facilities and many ramp applications.

• Anti-Roll Bar – Helps protect against accidental tipping during aggressive turns.

• 69 dB(A) Sound Level – Supports use in many occupied commercial and institutional environments.

• Ride-On Productivity – Reduces operator walking and fatigue during long cleaning routes.

• TASKI IntelliPod Compatibility – Can be paired with compatible IntelliPods for simplified chemical dosing and floor-care programs.

The NSS CHAMP 3529, catalog number 7603591, is the wider-cleaning model in the CHAMP 2929/3529 family.

Its 35-inch scrub path increases floor coverage while retaining the same large 29-gallon solution and recovery tanks, 36V electrical system, and highly maneuverable ride-on design.

35-Inch Cleaning Path

The CHAMP 3529 provides a 35-inch / 89 cm cleaning path, compared with the 29-inch width of the CHAMP 2929.

The wider deck makes it especially well suited for:

• Warehouses

• Distribution centers

• Manufacturing plants

• Large retail stores

• Schools and universities

• Transportation facilities

• Convention spaces

• Other expansive commercial floors

235Ah Wet Battery System

This configuration includes 235Ah wet batteries.

Wet, or flooded lead-acid, batteries are a proven commercial battery technology and can provide dependable service when properly maintained.

Routine maintenance includes:

• Checking electrolyte levels

• Adding distilled water when required

• Keeping battery terminals clean

• Following proper charging procedures

36V Power System

The CHAMP series uses a 36V electrical system.

NSS states that the 36V design can provide up to approximately 30% more runtime than a comparably configured 24V machine.

Actual operating time varies with:

• Battery condition

• Floor conditions

• Brush pressure

• Travel speed

• Vacuum use

• Operator technique

Universal Onboard Charger

A universal onboard battery charger is included.

This allows the batteries to be recharged wherever a suitable electrical outlet is available without moving a separate charger to the machine.

Pad Drivers Included

This configuration includes the pad drivers required for use with compatible floor pads.

Different pads can be selected for routine scrubbing, deeper cleaning, and other approved floor-maintenance applications.

Squeegee Assembly Included

The included squeegee assembly recovers spent cleaning solution behind the scrub deck.

Effective solution pickup helps leave floors cleaner and drier after each pass.

29-Gallon Solution and Recovery Tanks

The CHAMP 3529 includes:

• 29-gallon / 110-liter solution tank

• 29-gallon / 110-liter recovery tank

The large matched capacities reduce the number of refill and dump stops required during extended cleaning routes.

High-Productivity Ride-On Cleaning

The CHAMP family delivers approximately 40,000 to 47,800 square feet per hour of productivity, depending on model and operating conditions.

The 35-inch CHAMP 3529 is designed to maximize coverage in larger open areas.

Tight Turning Capability

Despite its wider scrub deck, the CHAMP platform remains highly maneuverable.

Its single front-drive wheel turns 90 degrees in either direction, allowing the machine to turn around in approximately 67-70 inches.

This helps the scrubber navigate:

• Aisles

• Hallways

• Loading areas

• Storage spaces

• Commercial environments with obstacles

1 HP Drive Motor

The CHAMP uses a 1 HP drive motor.

Combined with the 36V electrical system, it provides dependable traction for large commercial environments and many facility ramps.

Anti-Roll Protection

An integrated anti-roll bar provides additional protection if the machine is turned too aggressively.

TASKI IntelliPod Compatibility

The CHAMP series can be paired with compatible TASKI IntelliPods.

These systems can help simplify chemical dosing and improve consistency across facility floor-care programs.

Professional Applications

The NSS CHAMP 3529 is well suited for:

• Warehouses

• Distribution centers

• Manufacturing facilities

• Schools and universities

• Hospitals and healthcare facilities

• Large retail stores

• Airports and transportation facilities

• Government buildings

• Convention centers

• Commercial cleaning contractors

• Other large commercial facilities

Specifications

Specification	Details
Model	NSS CHAMP 3529
Catalog Number	7603591
Product Type	Ride-On Automatic Floor Scrubber
Cleaning Path	35 in. / 89 cm
Solution Tank	29 gal. / 110 L
Recovery Tank	29 gal. / 110 L
Battery System	36V
Battery Capacity	235Ah
Battery Type	Wet / Flooded Lead-Acid
Charger	Universal Onboard Charger
Pad Drivers	Included
Squeegee Assembly	Included
Run Time	Up to 4 Hours, Depending on Conditions
Productivity	Approx. 40,000-47,800 sq. ft./hr.
Drive Motor	1 HP
Turning Requirement	Approx. 67-70 in.
Sound Level	69 dB(A)
Anti-Roll Bar	Yes
IntelliPod Compatibility	Yes

Included

• NSS CHAMP 3529 Ride-On Auto Scrubber

• 235Ah Wet Battery Package

• Universal Onboard Charger

• Pad Drivers

• Squeegee Assembly
