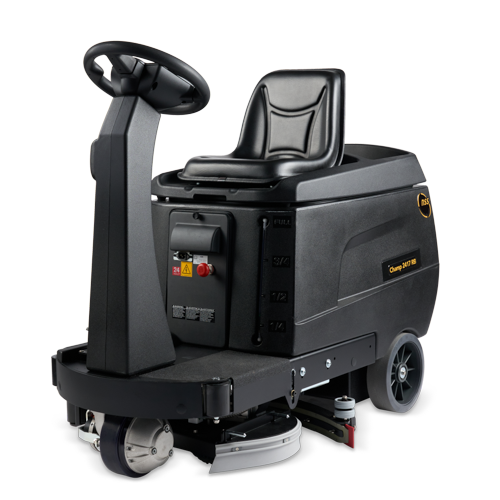

The NSS CHAMP 2417RB 7609002 is a compact 24-inch ride-on automatic scrubber with a 17-gallon solution tank, 110Ah AGM battery system, onboard charging, and included pad driver for high productivity in facilities where maneuverability matters.

Features:

• 24-Inch Cleaning Path – Compact ride-on design provides strong productivity while fitting into tighter commercial spaces than larger rider scrubbers.

• 110Ah AGM Battery Package – Sealed AGM batteries reduce routine maintenance compared with traditional flooded wet-cell batteries.

• 100-240V Onboard Charger – Universal onboard charging allows the machine to be recharged from a compatible electrical supply without transporting a separate charger.

• Pad Driver Included – Comes equipped for use with compatible floor pads.

• 17-Gallon Solution Tank – Provides substantial cleaning capacity while keeping the overall machine compact.

• Up to 32,100 sq. ft./hr. Productivity – Designed to clean large floor areas efficiently despite its relatively small ride-on footprint.

• Compact Ride-On Design – Reduces operator walking and fatigue while remaining maneuverable in congested areas.

• Tight-Turning Squeegee System – Squeegee follows closely around the scrub deck to help maintain water pickup through sharp turns.

• Conservation Mode – Helps optimize water and cleaning-solution use during routine floor maintenance.

• 69 dB(A) Sound Level – Supports use in many occupied commercial and institutional environments.

• High Productivity for Its Size – NSS rates the CHAMP 2417 as cleaning up to 20% faster than similarly sized ride-on scrubbers.

The NSS CHAMP 2417RB, catalog number 7609002, is designed for customers who want ride-on scrubber productivity without the size of a larger 29- or 35-inch machine.

With its 24-inch cleaning path, 17-gallon solution capacity, 110Ah AGM batteries, and compact chassis, the CHAMP 2417RB is especially useful in facilities where floor space is substantial but aisles, corridors, and turning areas are limited.

110Ah AGM Battery System

This configuration includes 110Ah AGM batteries.

AGM, or Absorbent Glass Mat, batteries are sealed and do not require the routine watering associated with traditional flooded lead-acid batteries.

This makes them a practical choice for facilities looking to reduce day-to-day battery maintenance.

24-Inch Cleaning Path

The CHAMP 2417RB provides a 24-inch / 61 cm cleaning path.

This compact width helps the machine work effectively in:

• Hallways

• Retail aisles

• Schools

• Healthcare facilities

• Office buildings

• Hospitality facilities

• Other areas where a larger ride-on scrubber may be difficult to maneuver

17-Gallon Solution Tank

The CHAMP 2417RB carries up to 17 gallons / 64 liters of cleaning solution.

This provides a useful balance between tank capacity and overall machine size.

Up to 32,100 sq. ft./hr. Productivity

NSS rates the CHAMP 2417RB for productivity of up to approximately 32,100 square feet per hour.

The ride-on design allows one operator to cover significantly more floor than a comparable walk-behind machine while reducing physical effort.

Compact Ride-On Maneuverability

A major advantage of the CHAMP 2417RB is its compact footprint.

The machine is designed to provide rider productivity while remaining agile enough for tighter commercial areas.

Tight-Turning Squeegee

The squeegee is designed to swing closely around the scrub deck during turns.

This helps maintain solution pickup even when the operator makes sharper turns around obstacles or through confined areas.

Conservation Mode

The CHAMP 2417RB includes a conservation mode designed to help reduce unnecessary solution use during routine cleaning.

This can help extend cleaning time between refills and improve overall resource efficiency.

69 dB(A) Operation

The CHAMP 2417RB operates at approximately 69 dB(A).

This supports use in many occupied commercial and institutional environments.

Professional Applications

The NSS CHAMP 2417RB is well suited for:

• Schools and universities

• Hospitals and healthcare facilities

• Retail stores

• Grocery stores

• Office buildings

• Hotels and hospitality facilities

• Government buildings

• Commercial cleaning contractors

• Facilities needing compact ride-on productivity

Specifications

Specification	Details
Model	NSS CHAMP 2417RB
Catalog Number	7609002
Product Type	Compact Ride-On Automatic Floor Scrubber
Cleaning Path	24 in. / 61 cm
Solution Tank	17 gal. / 64 L
Battery Capacity	110Ah
Battery Type	AGM
Charger	100-240V Universal Onboard Charger
Pad Driver	Included
Productivity	Up to 32,100 sq. ft./hr.
Sound Level	69 dB(A)
Conservation Mode	Yes
Ride-On Operation	Yes

Included

• NSS CHAMP 2417RB Ride-On Auto Scrubber

• 110Ah AGM Battery Package

• 100-240V Universal Onboard Charger

• Pad Driver

Product Resources

CHAMP 2417RB Product Information
