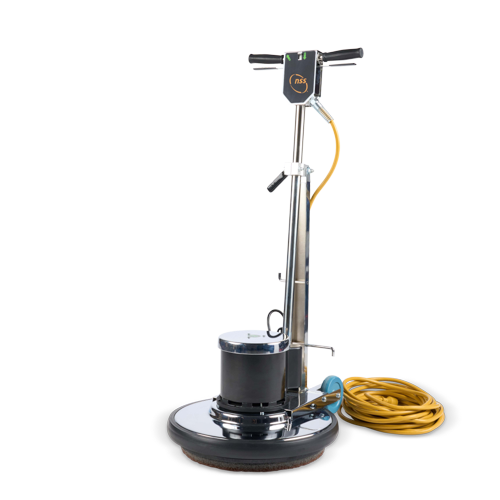

The NSS Galaxy 20DS N0303020 is a versatile 20-inch dual-speed commercial floor machine with a 1.5 HP motor, selectable 180/300 RPM operation, and pad-driver configuration for scrubbing, stripping, polishing, spray buffing, and carpet bonnet cleaning.

Features:

• 20-Inch Dual-Speed Platform – Combines the wider 20-inch working width with selectable 180/300 RPM operation for both productivity and versatility.

• Pad Driver Configuration – This version includes the pad-driver setup for use with compatible floor-maintenance pads.

• 1.5 HP Motor – Provides strong commercial power for demanding floor-care applications.

• 180/300 RPM Operation – Switch between low-speed scrubbing and higher-speed polishing applications with the flip of a switch.

• 120V, 50/60Hz Electrical Configuration – Designed for compatible 120V electrical service across either 50Hz or 60Hz frequency.

• Low-Speed Scrubbing Mode – The 180 RPM setting is suited for scrubbing, stripping, and other aggressive floor-maintenance tasks.

• Higher-Speed Polishing Mode – The 300 RPM setting adds versatility for polishing and carpet bonnet cleaning.

• Multi-Purpose Floor Care – Suitable for scrubbing, stripping, spray buffing, polishing, shampooing, and bonnet cleaning with appropriate pads or accessories.

• Precision-Balanced Construction – Designed for smooth operation and easier maneuverability across the floor.

• Chrome-Plated Steel Skirt – Adds durability around the machine base for repeated commercial use.

• Mechanical Safety Lock-Out – Helps prevent accidental machine starts during setup, handling, and storage.

• 58 dB(A) Sound Level – Supports relatively quiet operation in commercial and institutional environments.

• Economical Commercial Design – Combines multiple floor-care functions in one durable machine.

The NSS Galaxy 20DS N0303020 combines the productivity of a wider 20-inch working width with the versatility of dual-speed 180/300 RPM operation.

The lower speed is designed for aggressive floor-care procedures such as scrubbing and stripping, while the higher speed is useful for polishing and carpet bonnet cleaning.

This version also includes a pad-driver configuration, making it ready for a broad range of pad-based commercial floor-maintenance applications.

20-Inch Working Width

The Galaxy 20DS uses a 20-inch / 51 cm working width.

Compared with the 17-inch Galaxy models, the wider platform covers more floor with each pass and can improve productivity in larger open areas.

Pad Driver Configuration

Model N0303020 includes the PD / pad-driver configuration.

The pad driver supports compatible maintenance pads for applications such as:

• Scrubbing

• Finish stripping

• Spray buffing

• Polishing

• Carpet bonnet cleaning

Dual-Speed 180/300 RPM Operation

The defining feature of the Galaxy 20DS is its two-speed operation.

The operator can switch between:

• 180 RPM for scrubbing, stripping, and general low-speed floor care

• 300 RPM for polishing and carpet bonnet cleaning

This allows one machine to handle a wider range of maintenance procedures than a single-speed floor machine.

1.5 HP Commercial Motor

The Galaxy 20DS uses a 1.5 HP / 1110-watt motor.

The heavy-duty motor provides dependable power for repeated commercial applications ranging from aggressive stripping to routine polishing.

120V, 50/60Hz Electrical Configuration

This model is designed for 120V electrical service and is rated for 50/60Hz operation.

Always verify that the available electrical service matches the machine requirements before use.

Precision-Balanced Design

The Galaxy is precision balanced to provide smooth, predictable handling.

Proper balance helps make the larger 20-inch platform easier to control during extended floor-maintenance procedures.

Durable Steel Skirt

A chrome-plated steel skirt surrounds the machine base.

This adds durability in an area frequently exposed to contact with walls, furniture, fixtures, and other obstacles.

Mechanical Safety Lock-Out

A mechanical lock-out switch helps prevent accidental machine startup.

This adds an important measure of safety during setup, handling, transportation, and storage.

Quiet Commercial Operation

The Galaxy operates at approximately 58 dB(A).

Its relatively low sound level can be useful in schools, healthcare facilities, offices, and other environments where cleaning may occur during occupied hours.

Professional Applications

The NSS Galaxy 20DS is well suited for:

• Schools and universities

• Hospitals and healthcare facilities

• Office buildings

• Retail stores

• Hospitality environments

• Government facilities

• Commercial cleaning contractors

• Finished hard floors

• Carpet bonnet cleaning

• Carpet shampooing with appropriate accessories

• Large open commercial areas

Specifications

Specification	Details
Model	NSS Galaxy 20DS
Catalog Number	N0303020
Configuration	1.5 HP with Pad Driver
Product Type	Dual-Speed Single-Disc Floor Machine
Working Width	20 in. / 51 cm
Pad Speed	180 / 300 RPM
Speed Type	Dual Speed
Motor	1.5 HP / 1110 W
Voltage	120V
Frequency	50/60Hz
Pad Driver	Included / PD Configuration
Sound Level	58 dB(A)
Base Construction	Chrome-Plated Steel Skirt
Safety Lock-Out	Mechanical
Power Source	Corded Electric

Applications

• Scrubbing

• Stripping

• Spray Buffing

• Polishing

• Carpet Bonnet Cleaning

• Carpet Shampooing
