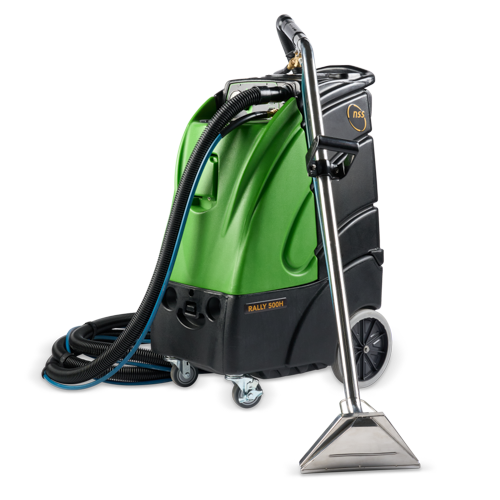

NSS RALLY 500H Extractor -120V-W/2JET SS WAND 4005005
The NSS Rally 500H combines adjustable 220-500 PSI cleaning pressure, onboard 2000-watt heat, and a 12-gallon solution tank for demanding professional carpet and rug extraction.
Features:
-
Adjustable 220-500 PSI Pressure – The major upgrade over the Rally 220H, letting you reduce pressure for routine carpet cleaning or increase it for more demanding extraction work.
-
Onboard 2000-Watt Heater – Heats cleaning solution to improve soil removal and chemical performance.
-
Up to 190°F Solution Temperature – Hot-water extraction helps loosen oily, greasy, and deeply embedded soils.
-
2-Jet Stainless-Steel Wand Included – Durable professional wand provides even solution application and dependable recovery.
-
12-Gallon Solution Tank – Supports larger cleaning jobs with fewer refill stops.
-
Built-In Circuit Detection – Helps operators verify electrical setup before beginning work.
-
75 dB(A) Sound Level – Designed for professional carpet-cleaning environments.
-
Service-Friendly Tilt-Back Tank Design – Removing a single bolt allows the tanks to tilt back for easier access to internal components.
-
Carpet & Rug Cleaning Versatility – Adjustable pressure makes the machine suitable for a wider range of professional textile-cleaning applications.
-
Commercial 120V Operation – Designed for professional cleaners, restoration work, and facility maintenance.
-
Built for Restorative Cleaning – High pressure and heated solution make it especially useful for heavily soiled commercial carpet.
-
Professional Portable Design – Combines strong extraction capability with the flexibility of a portable machine.
The NSS Rally 500H Carpet & Rug Extractor 4005005 is designed for professionals who need more cleaning-pressure flexibility than a standard portable extractor can provide.
Compared with the Rally 220H, the 500H retains the benefits of heated extraction and a 12-gallon solution tank, but upgrades the pump system to provide adjustable pressure from 220 PSI all the way to 500 PSI.
That wide pressure range allows the operator to tailor the machine to the job rather than using the same pressure for every carpet or rug.
Adjustable 220-500 PSI Cleaning Pressure
The defining advantage of the Rally 500H is its variable-pressure pump.
Operators can adjust solution pressure anywhere from approximately 220 PSI to 500 PSI, depending on the cleaning application.
Lower pressures can be useful for routine carpet extraction, while higher pressure gives technicians additional cleaning force for demanding restorative work.
This makes the Rally 500H a strong choice for professionals who clean a wide variety of:
-
Commercial carpet
-
Area rugs
-
High-traffic areas
-
Heavily soiled flooring
-
Hospitality carpet
-
Institutional facilities
-
Restoration projects
2000-Watt Onboard Heat
The Rally 500H uses a 2000-watt heating system to heat cleaning solution during operation.
Hotter solution can help loosen the bond between soil and carpet fibers and can improve the effectiveness of compatible carpet-cleaning chemistry.
This is particularly useful when dealing with:
-
Greasy soil
-
Oily residues
-
Heavy traffic lanes
-
Food-related soils
-
Deeply embedded contamination
Up to 190°F Solution Temperature
The Rally 500H can deliver cleaning solution at temperatures up to approximately 190°F / 88°C.
The combination of heat and adjustable pressure gives professional cleaners significantly more control over the extraction process.
Actual operating temperature can vary with incoming water temperature, solution flow, environmental conditions, and machine setup.
2-Jet Stainless-Steel Wand Included
This configuration includes a professional stainless-steel carpet wand with two solution jets.
The dual jets help distribute cleaning solution evenly across the wand’s working area, while stainless-steel construction provides durability for repeated commercial use.
12-Gallon Solution Tank
The Rally 500H provides a 12-gallon / 46-liter solution tank.
This larger capacity allows technicians to cover substantial areas before stopping to refill, improving productivity on commercial jobs.
Built-In Circuit Detection
The Rally 500H includes built-in circuit detection to help operators verify the electrical setup before beginning work.
This is especially useful with a heated extractor, where the pump, vacuum system, and high-output heater create greater electrical demand than a basic cold-water unit.
Heated Extraction for Restorative Cleaning
The combination of up to 500 PSI pressure and 190°F heated solution makes the Rally 500H especially well suited for restorative carpet cleaning.
It can be a strong fit for:
-
Hotels
-
Restaurants
-
Schools
-
Healthcare facilities
-
Office buildings
-
Commercial properties
-
Professional rug cleaning
-
Restoration work
Easy Maintenance Access
NSS designed the Rally 500H with serviceability in mind.
By removing a single bolt, the tank assembly can tilt backward to expose the internal components.
This provides easier access to:
-
Pump
-
Heater
-
Hoses
-
Plumbing
-
Electrical components
-
Other service items
Simpler service access can help reduce repair time and long-term downtime.
Professional Carpet & Rug Cleaning
Because pressure is adjustable rather than fixed, the Rally 500H can be adapted to different cleaning requirements.
This gives technicians more control when moving between routine commercial carpet and more demanding rug or restorative applications.
Always follow the carpet or rug manufacturer’s care recommendations and use an appropriate pressure, temperature, and cleaning solution for the material being cleaned.
Specifications
| Specification | Details |
|---|---|
| Model | NSS Rally 500H |
| Item Number | 4005005 |
| Product Type | Heated Portable Carpet & Rug Extractor |
| Extraction Type | Heated |
| Spray Pressure | Adjustable 220-500 PSI |
| Heater Power | 2000 Watts |
| Maximum Solution Temperature | Up to 190°F / 88°C |
| Solution Tank Capacity | 12 gal. / 46 L |
| Included Wand | 2-Jet Stainless-Steel Wand |
| Sound Level | 75 dB(A) |
| Built-In Circuit Detection | Yes |
| Service Access | Tilt-Back Tank Design |
| Power | 120V |
| Commercial Use | Yes |
Included
-
NSS Rally 500H Heated Carpet & Rug Extractor
-
2-Jet Stainless-Steel Carpet Wand
