The NSS Rally 500H with Hydroglide combines adjustable 220-500 PSI pressure, onboard 2000-watt heat, and a premium Hydroglide carpet wand for demanding professional carpet and rug extraction.

Features:

• Hydroglide Carpet Wand Included – The key upgrade over the 4005005 configuration, giving you NSS’s Hydroglide wand instead of the standard 2-jet stainless-steel wand.

• Adjustable 220-500 PSI Pressure – Lets you tailor solution pressure for routine carpet cleaning, restorative extraction, and more demanding applications.

• Onboard 2000-Watt Heater – Heats cleaning solution to improve soil removal and chemical performance.

• Up to 190°F Solution Temperature – Hot-water extraction helps loosen oily, greasy, and deeply embedded soils.

• 12-Gallon Solution Tank – Supports larger commercial cleaning jobs with fewer refill stops.

• Built-In Circuit Detection – Helps operators verify electrical setup before beginning work.

• 75 dB(A) Sound Level – Designed for professional carpet-cleaning environments.

• Service-Friendly Tilt-Back Tank Design – Removing a single bolt allows the tanks to tilt back for easier access to internal components.

• Carpet & Rug Cleaning Versatility – Adjustable pressure makes the machine useful across a wide range of professional textile-cleaning applications.

• Commercial 120V Operation – Designed for professional cleaners, restoration work, and facility maintenance.

• Built for Restorative Cleaning – High pressure and heated solution make it especially useful for heavily soiled commercial carpet.

• Professional Portable Design – Combines powerful extraction capability with the flexibility of a portable system.

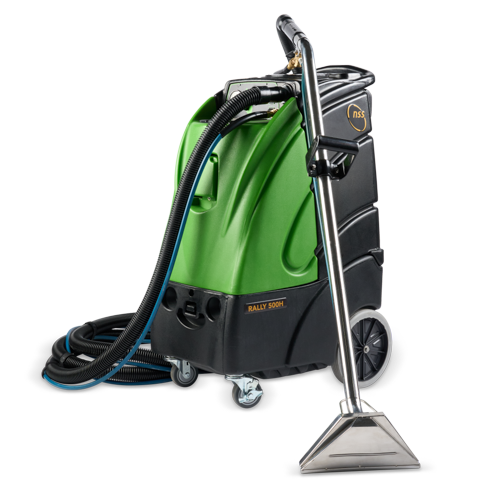

The NSS Rally 500H Carpet & Rug Extractor 4005006 is designed for professionals who need high-pressure heated extraction and want the added cleaning convenience of the Hydroglide carpet wand.

It delivers the same powerful Rally 500H performance as the standard wand package, including adjustable 220-500 PSI solution pressure, a 2000-watt heater, and solution temperatures up to 190°F / 88°C, but pairs the extractor with the Hydroglide wand for a premium floor-cleaning setup.

Hydroglide Carpet Wand Included

The defining difference between this 4005006 package and the standard 4005005 Rally 500H is the included Hydroglide carpet wand.

The Hydroglide is designed for professional carpet extraction and gives the operator an upgraded wand option for productive cleaning across larger carpeted areas.

This configuration is especially attractive for professional cleaners who want a complete premium extraction package without purchasing the Hydroglide separately.

Adjustable 220-500 PSI Cleaning Pressure

The Rally 500H uses a variable-pressure pump that can be adjusted from approximately 220 PSI to 500 PSI.

This wide range gives operators more control over the cleaning process.

Lower pressure can be used for routine commercial carpet, while higher settings provide additional cleaning force for heavily soiled or restorative applications.

2000-Watt Onboard Heat

The Rally 500H includes a 2000-watt heating system for heated extraction.

Hot cleaning solution helps loosen the bond between soil and carpet fibers and can improve the effectiveness of compatible professional cleaning chemistry.

Heated extraction is especially useful for:

• Greasy soil

• Oily residues

• Heavy traffic lanes

• Food-related soils

• Deeply embedded dirt

• Restorative commercial cleaning

Up to 190°F Solution Temperature

The Rally 500H can deliver cleaning solution at temperatures up to approximately 190°F / 88°C.

Combined with adjustable pressure, this gives technicians substantial flexibility to match the cleaning process to the carpet, soil load, and job requirements.

Actual operating temperature can vary with incoming water temperature, solution flow, environmental conditions, and machine setup.

12-Gallon Solution Tank

The Rally 500H provides a 12-gallon / 46-liter solution tank.

This gives professional cleaners enough capacity to cover substantial areas before stopping to refill, improving productivity on larger commercial jobs.

Built-In Circuit Detection

The Rally 500H includes built-in circuit detection to help operators verify the electrical setup before beginning work.

This is especially useful on heated extractors, where managing electrical demand correctly is important for reliable operation.

Heated Extraction for Difficult Soil

The combination of up to 500 PSI and heated solution up to 190°F makes the Rally 500H especially well suited for more demanding carpet-cleaning applications.

It is a strong choice for:

• Hotels

• Restaurants

• Schools

• Healthcare facilities

• Office buildings

• Commercial properties

• Professional rug cleaning

• Restoration work

Easy Maintenance Access

NSS designed the Rally 500H with straightforward service access.

By removing a single bolt, the tank assembly can tilt backward to expose internal components.

This provides easier access to:

• Pump

• Heater

• Hoses

• Plumbing

• Electrical components

• Other service items

Simplified maintenance access can help reduce service time and equipment downtime.

Professional Carpet & Rug Cleaning

The Rally 500H’s variable pressure gives technicians greater control when moving between different flooring and textile applications.

Always follow the carpet or rug manufacturer’s cleaning recommendations and select the appropriate pressure, temperature, chemistry, and extraction method for the material being cleaned.

Specifications

Specification	Details
Model	NSS Rally 500H
Item Number	4005006
Product Type	Heated Portable Carpet & Rug Extractor
Included Wand	Hydroglide Carpet Wand
Extraction Type	Heated
Spray Pressure	Adjustable 220-500 PSI
Heater Power	2000 Watts
Maximum Solution Temperature	Up to 190°F / 88°C
Solution Tank Capacity	12 gal. / 46 L
Sound Level	75 dB(A)
Built-In Circuit Detection	Yes
Service Access	Tilt-Back Tank Design
Power	120V
Commercial Use	Yes

Included

• NSS Rally 500H Heated Carpet & Rug Extractor

• Hydroglide Carpet Wand

Product Resources

Download Specification Sheet

Download Operation Manual

Download Rally 500H Parts List
