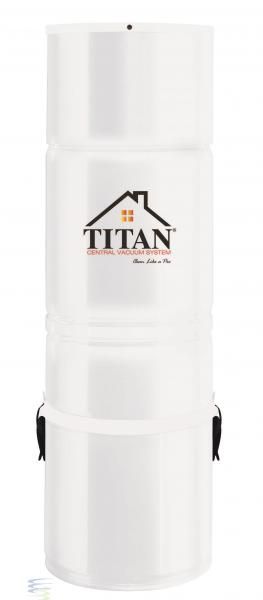

The TITAN TCS-7702 combines strong whole-home suction, ultra-quiet 58 dB operation, and flexible hybrid filtration for homes up to 7,500 square feet.

Features:

• Up to 7,500 Sq. Ft. Coverage – Designed for medium-to-large central vacuum installations throughout the home.

• 700 Air Watts – Delivers strong whole-home cleaning performance through an extensive central vacuum piping system.

• 138.1-Inch Water Lift – Provides powerful suction for carpets, hard floors, stairs, upholstery, and everyday cleaning.

• 138 CFM Airflow – Moves a high volume of air to efficiently transport dirt and debris through the tubing system.

• Ultra-Quiet 58 dB Operation – Keeps operating noise impressively low for a high-performance central vacuum power unit.

• Hybrid Filtration System – Can be operated with or without a disposable bag for greater maintenance flexibility.

• 5-Gallon Capacity – Provides generous dirt collection space between bag changes or emptying intervals.

• Bagged or Bagless Operation – Choose between cleaner sealed disposal or direct canister collection.

• Centralized Whole-Home Cleaning – Keeps the main motor and dirt collection system away from the rooms being cleaned.

• Compact 11.9-Inch Diameter – Delivers strong performance without requiring an excessively wide installation area.

• 10-Year Parts Warranty – Backed by long-term TITAN parts coverage.

The TITAN TCS-7702 is designed for homeowners who want strong central vacuum performance without excessive motor noise.

Rated for homes up to approximately 7,500 square feet, it produces 700 air watts, 138.1 inches of water lift, and 138 CFM of airflow, giving it the suction and airflow needed for larger residential piping systems.

One of its standout features is its 58 dB sound rating, making it an especially quiet option for customers who want the convenience of central vacuuming while keeping motor noise to a minimum.

Its hybrid filtration system also gives you a choice between disposable bag operation and direct canister collection, allowing you to choose the maintenance style that works best for your household.

Ultra-Quiet 58 dB Operation

The TCS-7702 operates at approximately 58 decibels, making quiet performance one of its biggest advantages.

Central vacuum power units are normally installed away from the main living areas, and the low sound output of the TCS-7702 helps reduce noise even further.

This makes it a strong option for garages, basements, utility rooms, or other installations located relatively close to occupied spaces.

Hybrid Bagged or Bagless Filtration

The TCS-7702 gives you the flexibility to operate the system with or without a disposable bag.

Choose:

• Bagged Operation – Keeps collected dirt enclosed for cleaner, more convenient disposal.

• Bagless Operation – Allows debris to collect directly inside the canister, eliminating the need to purchase replacement bags.

This hybrid design lets you switch between collection styles based on your preference.

Powerful Whole-Home Performance

Large central vacuum systems require both strong suction and high airflow to maintain effective performance through long tubing runs.

The TCS-7702 produces:

• 700 Air Watts

• 138.1 Inches of Water Lift

• 138 CFM of Airflow

This balanced combination provides the power needed for carpets, hard flooring, furniture, stairs, and other cleaning jobs throughout the home.

Up to 7,500 Sq. Ft. Coverage

The TCS-7702 is designed for central vacuum installations covering homes up to approximately 7,500 square feet.

Rather than carrying a full vacuum cleaner from room to room, a central system allows you to connect a lightweight hose to strategically placed wall inlets throughout the home.

The motor and dirt collection system remain permanently installed in one central location.

Large 5-Gallon Capacity

The TCS-7702 provides a generous 5-gallon dirt capacity.

That gives it substantially more collection space than a typical upright or canister vacuum, reducing how often the system needs to be emptied or serviced.

The large capacity is especially convenient in bigger homes where more floor space naturally produces more collected debris.

Centralized Cleaning Convenience

A central vacuum system keeps the heaviest components of the vacuum permanently installed away from the rooms being cleaned.

This provides several practical advantages:

• No heavy vacuum body to carry upstairs

• Reduced motor noise in living areas

• Large dirt capacity

• Convenient cleaning throughout multiple floors

• Easy access to stairs and above-floor areas

• One central location for dirt collection

Compact Power-Unit Design

Despite its large-home capability, the TCS-7702 measures only 11.9 inches in diameter.

Its relatively narrow body helps conserve wall and floor space in garages, basements, mechanical rooms, and utility areas.

Specifications

Specification	Details
Model	TITAN TCS-7702
Recommended Application	Medium-to-Large Homes
Maximum Cleaning Area	Up to 7,500 sq. ft.
Maximum Air Watts	700
Water Lift	138.1 in.
Airflow	138 CFM
Filtration	Hybrid
Bagged Operation	Yes
Bagless Operation	Yes
Collection Capacity	5 US Gallons
Sound Level	58 dB
Weight	31.8 lbs.
Height	38.5 in.
Diameter	11.9 in.
Warranty	10-Year Parts Warranty

Filtration Options

• Disposable Bag

• Bagless Canister Collection

Product Resource

Download Product Specification Sheet
