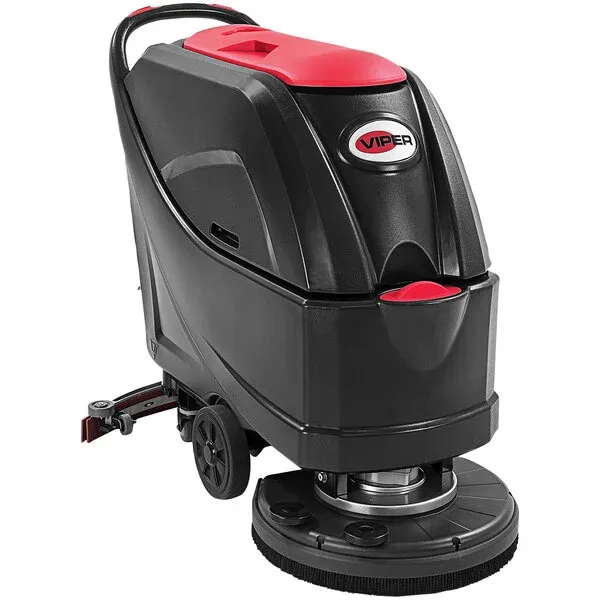

The VIPER AS5160 50000401 is a 20-inch cordless walk-behind automatic floor scrubber with pad-assist drive, a 16-gallon solution tank, 16-gallon recovery tank, included pad driver, 31-inch-class squeegee assembly, and onboard charging. Batteries are sold separately.

Features:

• Machine Only – Batteries Sold Separately – Allows the compatible battery package to be selected separately for the facility’s needs.

• 20-Inch Disc Cleaning Path – Compact commercial cleaning width provides a balance of maneuverability and productivity.

• Pad-Assist Drive – Brush action helps move the machine forward without a separate powered traction system.

• Pad Driver Included – Ready for use with compatible floor pads.

• 16-Gallon Solution Tank – Provides useful capacity for extended commercial cleaning.

• 16-Gallon Recovery Tank – Matching recovery capacity supports productive one-pass scrubbing.

• 31-Inch-Class Squeegee Assembly – Wide rear recovery system helps collect dirty solution behind the cleaning deck.

• 10-Amp Onboard Charger – Simplifies charging once a compatible battery package is installed.

• Up to 23,680 Sq. Ft./Hr. Productivity – Designed for efficient cleaning of small-to-medium commercial floor areas.

• 59.5 Lbs. Brush Pressure – Provides strong mechanical cleaning for routine commercial floor maintenance.

• 150 RPM Brush Speed – Delivers steady scrubbing action across compatible hard-floor surfaces.

• Quiet Operation Under 72 dB – Suitable for many occupied commercial environments.

• Water-Level Indicator – Helps operators monitor remaining solution during cleaning.

• Intuitive Control Panel – Straightforward display and button layout helps reduce training time.

• Dual Safety Switches – Supports safer everyday operation.

• Large Casters – Help improve maneuverability and transport around commercial facilities.

• Cordless Operation – Eliminates power-cord trip hazards once compatible batteries are installed.

The VIPER AS5160, product number 50000401, is designed for facilities that need more capacity and productivity than a compact scrubber while retaining the maneuverability of a traditional walk-behind machine.

Its combination of a 20-inch disc cleaning path, 16-gallon solution and recovery tanks, pad-assist drive, and straightforward controls makes it a practical choice for schools, offices, retail spaces, commercial kitchens, and other medium-size floor-care applications.

Batteries Sold Separately

This 50000401 configuration does not include batteries.

A compatible battery package must be selected and installed before cordless operation.

This allows the customer to choose a battery configuration based on:

• Desired runtime

• Maintenance preferences

• Existing fleet standards

• Replacement requirements

• Budget

10-Amp Onboard Charger

The AS5160 includes a 10-amp onboard charger.

Once compatible batteries are installed, the charger remains with the machine and simplifies routine charging without the need to carry a separate external charger.

20-Inch Disc Cleaning System

The AS5160 uses a 20-inch disc cleaning deck.

The disc platform is well suited for:

• Routine daily scrubbing

• Smooth resilient flooring

• VCT

• Tile

• Sealed concrete

• Other compatible hard-floor surfaces

Pad Driver Included

This configuration includes a pad driver.

Compatible floor pads can be selected according to the intended cleaning procedure, including routine scrubbing and other maintenance applications.

Pad-Assist Drive

The AS5160 uses pad-assist operation rather than a powered traction drive.

The rotating pad or brush helps pull the machine forward, reducing operator effort compared with a completely manual-push scrubber.

Pad assist is especially practical for:

• Moderate-size cleaning routes

• Corridors

• Classrooms

• Retail areas

• Commercial kitchens

• Facilities that do not require self-propelled traction

59.5 Lbs. of Brush Pressure

The scrub deck can apply approximately 59.5 lbs. of pressure.

This provides solid mechanical cleaning performance for routine commercial floor maintenance and more demanding soil conditions.

150 RPM Brush Speed

The disc deck operates at approximately 150 RPM.

This provides steady scrubbing action across a variety of compatible hard-floor surfaces.

16-Gallon Solution Tank

The AS5160 carries 16 gallons of cleaning solution.

This capacity reduces refill stops while maintaining a manageable walk-behind footprint.

16-Gallon Recovery Tank

A matching 16-gallon recovery tank collects dirty solution during scrubbing.

The balanced tank capacities support efficient one-pass cleaning.

31-Inch-Class Squeegee Assembly

The included rear squeegee measures approximately 31 inches wide.

Its width extends beyond the cleaning deck to help collect dirty solution during straight cleaning and normal maneuvering.

Up to 23,680 Sq. Ft. Per Hour

VIPER rates the AS5160 for cleaning productivity of up to approximately 23,680 square feet per hour.

Actual productivity will vary based on:

• Floor layout

• Travel speed

• Soil level

• Obstacles

• Refill and dump stops

• Operator technique

Quiet Commercial Operation

The AS5160 operates at under 72 dB, making it suitable for many occupied commercial environments.

Water-Level Indicator

An integrated water-level indicator helps operators monitor remaining solution.

This makes it easier to plan refill stops during longer cleaning routes.

Intuitive Operator Controls

The control panel uses a straightforward display and button layout designed to simplify machine operation.

This helps reduce training time for new operators.

Dual Safety Switches

Two safety switches are incorporated into the machine’s operating system to support safer everyday use.

Professional Applications

The VIPER AS5160 50000401 is well suited for:

• Schools

• Offices

• Retail stores

• Shopping centers

• Commercial kitchens

• Restaurants

• Hotels

• Healthcare facilities

• Government buildings

• Commercial cleaning contractors

• Hallways and corridors

• Small-to-medium commercial floor areas

Specifications

Specification	Details
Model	VIPER AS5160
Product Number	50000401
Product Type	Cordless Walk-Behind Automatic Floor Scrubber
Configuration	Machine Only – Batteries Sold Separately
Cleaning Width	20 in.
Drive Type	Pad Assist
Pad Driver	Included
Brush / Pad Pressure	Approx. 59.5 lbs.
Brush Speed	150 RPM
Solution Tank Capacity	16 gal.
Recovery Tank Capacity	16 gal.
Squeegee Width	Approx. 31.1 in.
Charger	10-Amp Onboard
Batteries	Not Included
Maximum Productivity	Approx. 23,680 sq. ft./hr.
Sound Level	Less Than 72 dB
Machine Length	53.94 in.
Machine Width	23.63 in.
Machine Height	48 in.
Published Weight	473.5 lbs.
Water-Level Indicator	Yes
Dual Safety Switches	Yes

Included

• VIPER AS5160 Walk-Behind Automatic Scrubber

• 20-Inch Disc Cleaning System

• Pad Driver

• 31-Inch-Class Squeegee Assembly

• 10-Amp Onboard Charger

• Water-Level Indicator System

Batteries are not included and must be selected separately before operation.

Optional / Required Accessories

• Compatible Battery Package

• Compatible 20-Inch Floor Pads

• Compatible Scrub Brush

• Replacement Squeegee Blades

• Other Compatible VIPER AS5160 Accessories
