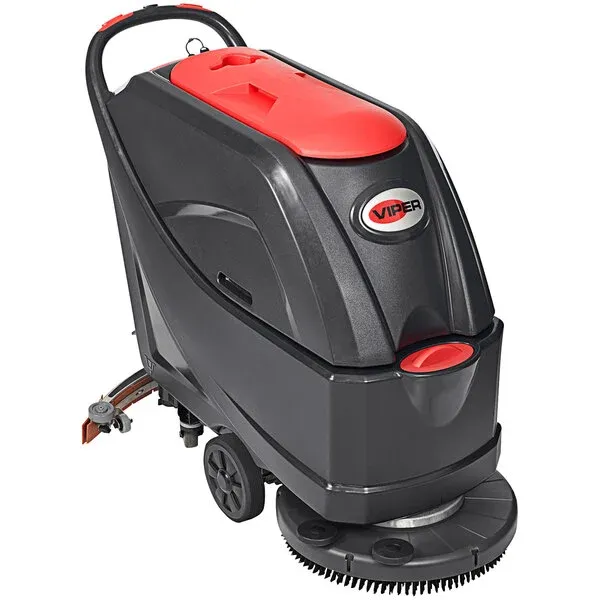

The VIPER AS5160 56384810 is a 20-inch cordless walk-behind automatic floor scrubber with included 105Ah wet batteries, pad-assist drive, a 16-gallon solution tank, 16-gallon recovery tank, included pad driver, 31-inch-class squeegee assembly, and onboard charging for productive commercial floor cleaning.

Features:

• 105Ah Wet Battery Package Included – Provides a complete 24V cordless configuration for daily commercial cleaning.

• 20-Inch Disc Cleaning Path – Compact enough for maneuverability while still providing useful commercial productivity.

• Pad-Assist Drive – Brush action helps move the machine forward without a separate powered traction system.

• Pad Driver Included – Ready for use with compatible 20-inch floor pads.

• 16-Gallon Solution Tank – Provides useful capacity for extended cleaning routes.

• 16-Gallon Recovery Tank – Matching recovery capacity supports efficient one-pass cleaning.

• 31-Inch-Class Squeegee Assembly – Wide rear recovery system helps collect dirty solution behind the scrub deck.

• Onboard Charger – Simplifies routine charging between cleaning shifts.

• Up to 23,680 Sq. Ft./Hr. Productivity – Designed for efficient maintenance of small-to-medium commercial floor areas.

• 59.5 Lbs. Brush Pressure – Provides strong mechanical cleaning for routine and more demanding floor conditions.

• 150 RPM Brush Speed – Delivers steady scrubbing action across compatible hard-floor surfaces.

• Quiet Operation Under 72 dB – Suitable for many occupied commercial environments.

• Water-Level Indicator – Helps operators monitor remaining solution during cleaning.

• Intuitive Control Panel – Straightforward display and button layout helps reduce operator training time.

• Dual Safety Switches – Supports safer day-to-day operation.

• Large Casters – Help improve maneuverability and transport around commercial facilities.

• Cordless Operation – Eliminates power-cord trip hazards and increases cleaning freedom.

The VIPER AS5160, product number 56384810, is designed for facilities that need more capacity and productivity than a compact scrubber while retaining the maneuverability of a traditional walk-behind machine.

Its combination of a 20-inch disc cleaning path, 16-gallon solution and recovery tanks, pad-assist drive, included wet battery package, and straightforward controls makes it a practical choice for schools, offices, retail spaces, commercial kitchens, and other medium-size floor-care applications.

105Ah Wet Battery Package Included

This 56384810 configuration includes 105Ah wet lead-acid batteries.

The machine operates on a 24V battery system, providing cordless operation throughout the facility.

Wet batteries require routine inspection and maintenance according to battery-manufacturer recommendations, including electrolyte monitoring when applicable.

Onboard Charger

The AS5160 includes an onboard battery charger.

Because the charger remains with the machine, routine charging can be performed without transporting or storing a separate external charger.

20-Inch Disc Cleaning System

The AS5160 uses a 20-inch disc cleaning deck.

The disc platform is well suited for:

• Routine daily scrubbing

• Smooth resilient flooring

• VCT

• Tile

• Sealed concrete

• Textured hard floors

• Other compatible commercial surfaces

Pad Driver Included

This configuration includes a 20-inch pad driver.

Compatible floor pads can be selected according to the cleaning procedure, including routine scrubbing and other maintenance applications.

Pad-Assist Drive

The AS5160 uses pad-assist operation rather than a powered traction drive.

The rotating pad or brush helps pull the machine forward, reducing operator effort compared with a completely manual-push scrubber.

This setup is well suited for:

• Moderate-size cleaning routes

• Corridors

• Classrooms

• Retail areas

• Commercial kitchens

• Facilities that do not require self-propelled traction

59.5 Lbs. of Brush Pressure

The scrub deck can apply approximately 59.5 lbs. of pressure.

This provides solid mechanical cleaning performance for routine maintenance and more demanding soil conditions.

150 RPM Brush Speed

The cleaning deck operates at approximately 150 RPM.

This provides steady agitation across compatible commercial hard-floor surfaces.

16-Gallon Solution Tank

The AS5160 carries 16 gallons of cleaning solution.

This capacity reduces refill stops while maintaining a manageable walk-behind footprint.

16-Gallon Recovery Tank

A matching 16-gallon recovery tank collects dirty solution during scrubbing.

The balanced tank capacities support efficient one-pass cleaning.

31-Inch-Class Squeegee Assembly

The included rear squeegee measures approximately 31 1/8 inches wide.

Its width extends beyond the cleaning deck to help collect dirty solution during straight cleaning and normal maneuvering.

Up to 23,680 Sq. Ft. Per Hour

VIPER rates the AS5160 for cleaning productivity of up to approximately 23,680 square feet per hour.

Actual productivity will vary based on:

• Floor layout

• Travel speed

• Soil level

• Obstacles

• Refill and dump stops

• Operator technique

Quiet Commercial Operation

The AS5160 operates at under 72 dB, making it suitable for many occupied commercial environments.

Water-Level Indicator

An integrated water-level indicator helps operators monitor remaining solution.

This makes it easier to plan refill stops during longer cleaning routes.

Intuitive Operator Controls

The control panel uses a straightforward display and button layout designed to simplify operation.

This helps reduce training time for new operators.

Dual Safety Switches

Two safety switches are incorporated into the machine’s operating system to support safer everyday use.

Professional Applications

The VIPER AS5160 56384810 is well suited for:

• Schools

• Offices

• Retail stores

• Shopping centers

• Commercial kitchens

• Restaurants

• Hotels

• Healthcare facilities

• Government buildings

• Commercial cleaning contractors

• Hallways and corridors

• Small-to-medium commercial floor areas

Specifications

Specification	Details
Model	VIPER AS5160
Product Number	56384810
Product Type	Cordless Walk-Behind Automatic Floor Scrubber
Battery Package	105Ah Wet Batteries Included
Battery Type	Lead-Acid / Wet
Battery System	24V
Cleaning Width	20 in.
Drive Type	Pad Assist
Pad Driver	Included
Brush / Pad Pressure	Approx. 59.5 lbs.
Brush Speed	150 RPM
Solution Tank Capacity	16 gal.
Recovery Tank Capacity	16 gal.
Squeegee Width	Approx. 31.1 in.
Charger	Onboard
Maximum Productivity	Approx. 23,680 sq. ft./hr.
Sound Level	Less Than 72 dB
Machine Length	Approx. 53.9 in.
Machine Width	Approx. 23.6 in.
Machine Height	48 in.
Published Weight	Approx. 473.5 lbs.
Shipping Weight	Approx. 410 lbs.
Water-Level Indicator	Yes
Dual Safety Switches	Yes

Included

• VIPER AS5160 Walk-Behind Automatic Scrubber

• 105Ah Wet Battery Package

• 20-Inch Disc Cleaning System

• Pad Driver

• 31-Inch-Class Squeegee Assembly

• Onboard Battery Charger

• Water-Level Indicator System

Optional / Recommended Accessories

• Compatible 20-Inch Floor Pads

• Compatible Scrub Brush

• Replacement Squeegee Blades

• Other Compatible VIPER AS5160 Accessories
