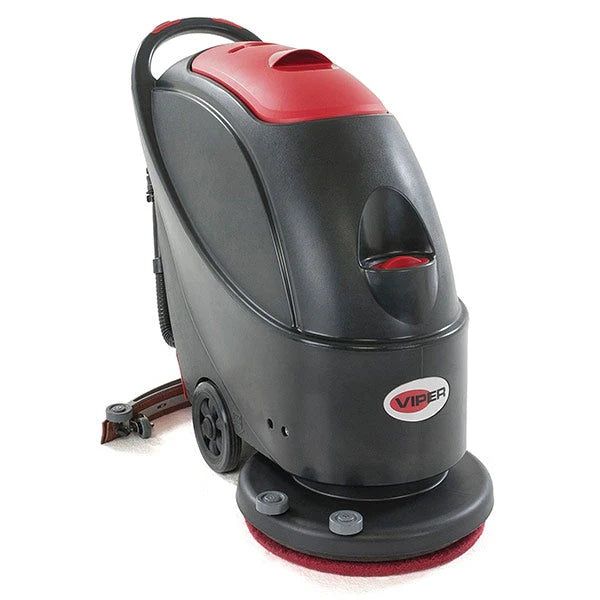

The VIPER AS430C 50000226 is a compact 17-inch cord-electric walk-behind automatic floor scrubber with 13-gallon solution and recovery tanks, brush/pad-assist operation, a 28.5-inch-class squeegee, and a long power cord for dependable commercial floor cleaning without batteries or charging downtime.

Features:

• 120V Cord-Electric Operation – Provides continuous cleaning power without batteries, charging, or battery maintenance.

• Approximately 65-Foot Power Cord – Provides a generous operating range for commercial cleaning areas.

• 17-Inch Disc Cleaning Path – Compact enough for maneuverability while providing useful productivity in medium-size facilities.

• Brush/Pad-Assist Drive – Rotation of the cleaning head helps move the machine forward and reduces pushing effort.

• 17-Inch Scrub Brush Included – Equipped from the factory for routine hard-floor scrubbing.

• 13-Gallon Solution Tank – Provides substantial cleaning-solution capacity for a compact walk-behind scrubber.

• 13-Gallon Recovery Tank – Matching recovery capacity supports efficient one-pass cleaning.

• Approximately 28.5-Inch Squeegee System – Wide recovery path helps collect dirty solution behind the scrub deck.

• 160 RPM Brush Speed – Provides steady mechanical agitation for routine commercial floor care.

• Up to 77 Lbs. Brush Pressure – Provides substantial down pressure for effective hard-floor cleaning.

• Up to Approximately 17,200 Sq. Ft./Hr. Theoretical Productivity – Designed for efficient cleaning of medium-size commercial spaces.

• One-Pass Scrubbing and Drying – Scrubs the floor and recovers dirty solution in the same pass.

• Large Recovery-Tank Opening – Makes rinsing and routine tank cleaning easier.

• Recovery Drain Hose – Simplifies disposal of collected dirty solution.

• Ergonomic Start/Stop Controls – Designed for straightforward day-to-day operation.

• Compact Commercial Design – Well suited to areas where larger automatic scrubbers may be difficult to maneuver.

The VIPER AS430C, product number 50000226, is the cord-electric member of VIPER’s AS430/510 scrubber family and is designed for medium-size and high-traffic commercial areas. Unlike battery-powered scrubbers, the AS430C can operate continuously as long as electrical power is available, making it a practical choice for facilities where charging schedules and battery maintenance are undesirable.

120V Cord-Electric Operation

This U.S. configuration operates from 120V AC power and does not require batteries.

Cord-electric operation provides several advantages for the right facility:

• No battery charging between shifts

• No battery replacement costs

• No battery watering or maintenance

• Consistent power throughout the cleaning session

• Immediate readiness whenever an outlet is available

The long power cord provides substantial cleaning range while retaining the simplicity of a direct-electric machine.

17-Inch Disc Cleaning System

The AS430C uses a 17-inch disc cleaning deck with an included polypropylene scrub brush.

The compact cleaning width makes the machine maneuverable enough for tighter commercial spaces while still providing significantly greater productivity than manual mopping.

The manufacturer lists the AS430C at 160 RPM with up to approximately 77 lbs. of brush pressure.

Brush/Pad-Assist Operation

The AS430C uses a brush/pad-assist drive system rather than a separate powered traction motor.

Rotation of the cleaning head helps pull the scrubber forward, reducing the effort required to move the machine during normal cleaning.

13-Gallon Solution Tank

The AS430C carries approximately 13 gallons of clean solution.

This provides useful capacity for medium-size commercial cleaning routes while keeping the overall machine compact enough for maneuverability.

13-Gallon Recovery Tank

A matching 13-gallon recovery tank collects dirty solution as the machine moves across the floor.

The solution and recovery tanks are designed as an integrated system to provide useful capacity within a compact machine footprint.

28.5-Inch-Class Squeegee System

The AS430C uses a 730 mm / approximately 28.5-inch rear squeegee system with replaceable front and rear blades.

The wide squeegee extends beyond the 17-inch cleaning path to recover dirty solution after scrubbing.

One-Pass Cleaning

The AS430C is designed to scrub and recover solution in a single pass.

This helps leave the floor ready for use more quickly than traditional mop-and-bucket cleaning methods.

Up to Approximately 17,200 Sq. Ft. Per Hour

VIPER publishes a theoretical productivity rating of approximately 1,600 m²/hr., equivalent to roughly 17,200 square feet per hour.

Actual productivity will vary based on:

• Facility layout

• Electrical outlet placement

• Cord management

• Soil conditions

• Obstacles

• Tank filling and emptying

• Operator technique

Easy Tank Maintenance

A large recovery-tank opening provides convenient access for rinsing and routine cleaning.

The AS430C also includes a recovery drain hose for easier disposal of collected dirty solution.

Professional Applications

The VIPER AS430C 50000226 is well suited for:

• Schools

• Restaurants

• Hotels

• Retail stores

• Shopping centers

• Hospitals and healthcare facilities

• Train and transit stations

• Offices

• Commercial kitchens

• Institutional buildings

• Commercial cleaning contractors

• Medium-size high-traffic floor areas

VIPER specifically positions the AS430C for medium-size and high-traffic areas such as hotels, restaurants, schools, retail facilities, hospitals, and transportation facilities.

Specifications

Specification	Details
Model	VIPER AS430C
Product Number	50000226
Product Type	Corded Walk-Behind Automatic Floor Scrubber
Electrical Configuration	120V AC
Power Type	Cord-Electric
Cleaning Width	17 in.
Cleaning System	Disc
Drive System	Brush / Pad Assist
Brush Speed	160 RPM
Maximum Brush Pressure	Approx. 77 lbs.
Solution Tank Capacity	Approx. 13 gal.
Recovery Tank Capacity	Approx. 13 gal.
Squeegee Width	Approx. 28.5 in. / 730 mm
Power Cord	Approx. 65–66 ft.
Maximum Productivity	Approx. 17,200 sq. ft./hr. / 1,600 m²/hr.
Sound Pressure Level	Approx. 72 dB(A)
Brush Motor	750W
Machine Dimensions	Approx. 47.2 x 24 x 46.1 in.
Net Weight	Approx. 154 lbs.
Recovery Drain Hose	Yes
Battery Required	No
Charger Required	No

Published AS430C specifications list a 750W brush motor, 160 RPM brush speed, 50-liter solution and recovery tanks, 730 mm squeegee, 20-meter cord, 1,600 m²/hr. theoretical productivity, and approximately 70 kg net weight.

Included

• VIPER AS430C 17-Inch Corded Automatic Scrubber

• 17-Inch Polypropylene Disc Scrub Brush

• Rear Squeegee Assembly

• Front Squeegee Blade

• Rear Squeegee Blade

• Long Commercial Power Cord

VIPER lists the 17-inch disc brush and 28.5-inch front and rear squeegee blades as standard equipment for product number 50000226.

Optional / Recommended Accessories

• Compatible 17-Inch Pad Holder

• Compatible 17-Inch Floor Pads

• Replacement 17-Inch Scrub Brush

• Replacement Front Squeegee Blade

• Replacement Rear Squeegee Blade

• Other Compatible VIPER AS430C Accessories
