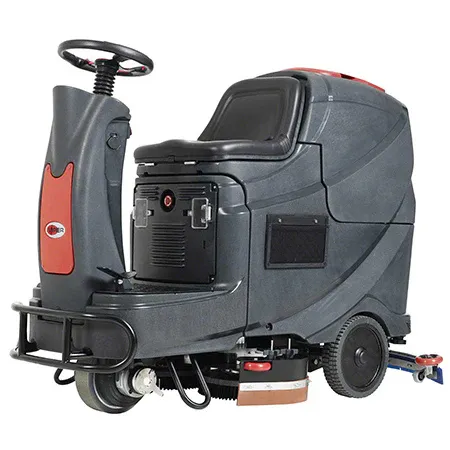

The VIPER AS710R-TPPL is a 28-inch ride-on automatic floor scrubber with four 128Ah TPPL batteries, 31-gallon-class solution and recovery tanks, included pad holders and scrub brushes, a 37-inch-class squeegee assembly, and a 50-amp shelf charger for productive commercial floor cleaning.

Features:

• Four 128Ah TPPL Batteries Included – Thin Plate Pure Lead sealed lead-acid batteries provide a low-maintenance cordless power system for demanding commercial cleaning.

• 50-Amp Shelf Charger Included – Provides high-output charging for the included TPPL battery package.

• Compact Ride-On Design – Combines seated operation with maneuverability for medium-to-large facilities.

• 28-Inch Dual-Disc Cleaning Path – Provides substantially greater coverage than a typical walk-behind scrubber.

• Pad Holders and Scrub Brushes Included – Comes equipped for both pad-based and brush-based floor cleaning.

• 31-Gallon-Class Solution and Recovery Tanks – Large-capacity tanks reduce refill and dump stops on longer cleaning routes.

• Powered Traction Drive – Provides self-propelled forward movement for productive rider operation.

• One-Touch Scrubbing – Simplifies activation of the primary cleaning functions.

• Four Solution-Flow Rates – Allows water delivery to be matched to different floor and soil conditions.

• High Brush Pressure – Provides substantial down pressure for effective routine and heavier-duty cleaning.

• 204 RPM Brush Speed – Delivers steady mechanical scrubbing action from the dual-disc deck.

• Up to Approximately 55,200 Sq. Ft./Hr. Productivity – Designed to cover large commercial floor areas efficiently.

• Up to 3.7 MPH Travel Speed – Helps reduce cleaning and transport time across larger facilities.

• 69 dB(A) Sound Level – Suitable for many occupied commercial and institutional environments.

• 10% Maximum Climbing Rate – Supports movement on moderate facility ramps when used according to manufacturer guidelines.

• Easy Recovery-Tank Cleanout – Designed to simplify routine end-of-shift maintenance.

• Recovery Emptying Hose – Provides convenient disposal of collected dirty solution.

• Water-Level Indicator – Helps operators monitor remaining solution during cleaning.

• Integrated Squeegee Storage – Provides onboard storage for the squeegee assembly during transport.

• Front and Rear Bumpers – Help protect the machine during regular commercial operation.

• Side Storage Pocket – Provides a convenient place for paperwork or other small items.

• USB Charging Port – Allows compatible portable electronics to be charged from the machine.

The VIPER AS710R-TPPL is designed for daily scrubbing and drying in medium-to-large, high-traffic commercial facilities.

Its combination of a 28-inch dual-disc cleaning system, large-capacity tanks, ride-on operation, included TPPL battery package, and simple One-Touch controls makes it a practical step up from large walk-behind scrubbers for facilities with substantial hard-floor areas.

Four 128Ah TPPL Batteries Included

This configuration includes four 12V 128Ah TPPL batteries.

TPPL stands for Thin Plate Pure Lead. These are sealed lead-acid batteries designed for commercial equipment applications.

The sealed construction eliminates the routine watering requirements associated with traditional flooded lead-acid batteries, reducing day-to-day battery maintenance.

50-Amp Shelf Charger Included

A 50-amp shelf charger is included with this configuration.

Unlike an onboard charger, the shelf charger remains separate from the scrubber during operation.

Compact Ride-On Design

The AS710R provides seated operation without moving into the size class of the largest ride-on scrubbers.

This makes it particularly useful for facilities with:

• Long corridors

• Large open floor areas

• Retail aisles

• Schools

• Hotels

• Public buildings

• Repetitive daily cleaning routes

28-Inch Dual-Disc Cleaning System

The AS710R uses a dual-disc cleaning deck with an approximately 28-inch-class cleaning path.

This provides significantly greater floor coverage than smaller walk-behind machines while retaining maneuverability for indoor commercial environments.

Pad Holders and Scrub Brushes Included

This configuration includes both pad holders and scrub brushes.

The pad holders allow compatible floor pads to be selected for different maintenance procedures, while the scrub brushes provide direct bristle contact for routine floor cleaning.

High Brush Pressure

Published information for the AS710R family lists substantial brush pressure for effective commercial cleaning.

The TPPL configuration is designed to provide firm pad or brush contact for routine maintenance and heavier soil conditions.

204 RPM Brush Speed

The dual cleaning heads operate at approximately 204 RPM.

This provides steady mechanical agitation across compatible hard-floor surfaces.

31-Gallon-Class Tanks

The AS710R is marketed as a 31-gallon-class ride-on scrubber.

Published family specifications list approximately 31–32 gallons for both solution and recovery capacity.

The large tanks reduce the number of refill and dump stops required during extended cleaning routes.

Wide Rear Squeegee Assembly

This configuration is supplied with a 37-inch-class rear squeegee assembly.

The squeegee extends beyond the cleaning deck to recover dirty solution during straight cleaning and normal maneuvering.

One-Touch Scrubbing

The AS710R features One-Touch scrubbing controls to simplify daily operation.

This helps operators engage the primary cleaning functions without repeatedly adjusting individual systems.

Four Solution-Flow Rates

Four solution-flow settings allow water delivery to be matched to:

• Routine maintenance

• Moderate soil

• Heavier cleaning

• Different floor surfaces

This helps balance cleaning performance with solution consumption.

Up to Approximately 55,200 Sq. Ft. Per Hour

Published specifications list maximum productivity at approximately 55,219 square feet per hour.

Actual productivity will vary based on:

• Facility layout

• Travel speed

• Soil conditions

• Solution-flow setting

• Obstacles

• Refill and dump stops

• Operator technique

Up to 3.7 MPH

The powered drive system provides a maximum published speed of approximately 3.7 MPH.

This helps the operator cover larger areas efficiently while reducing the physical demands associated with walk-behind machines.

Maneuverability

The AS710R is designed for indoor commercial environments where both productivity and maneuverability are important.

Published information lists a minimum aisle turning requirement of approximately 72 inches.

10% Maximum Climbing Rate

The AS710R has a published maximum climbing rate of approximately 10%.

Manufacturer instructions should always be followed when traveling on ramps or inclines.

Quiet 69 dB(A) Operation

The machine has a published sound-pressure level of approximately 69 dB(A).

This makes it suitable for many occupied commercial and institutional facilities.

Easy Recovery-Tank Maintenance

The recovery system is designed for easier routine cleanout and includes a recovery emptying hose for convenient dirty-water disposal.

Onboard Squeegee Storage

An integrated storage system allows the squeegee assembly to be carried on the machine when needed.

This is useful during transport or when maneuvering through tighter areas.

Professional Applications

The VIPER AS710R-TPPL is well suited for:

• Schools and universities

• Shopping malls

• Retail stores

• Hotels

• Railway and transportation facilities

• Exhibition centers

• Parking facilities

• Public institutions

• Healthcare facilities

• Government buildings

• Commercial cleaning contractors

• Medium-to-large commercial buildings

• High-traffic hard-floor areas

Specifications

Specification	Details
Model	VIPER AS710R
Configuration	AS710R-TPPL
Product Model	8310-AS710R-TPPL
Product Type	Ride-On Automatic Floor Scrubber
Battery Package	Four 128Ah TPPL Batteries Included
Battery Type	TPPL Sealed Lead-Acid
Battery Specification	4 x 12V, 128Ah
Charger	50-Amp Shelf Charger
Cleaning Width	28-Inch Class
Cleaning System	Dual Disc
Brush Configuration	2 Brushes
Brush Speed	204 RPM
Pad Holders	Included
Scrub Brushes	Included
Solution Tank Capacity	Approx. 31-Gallon Class
Recovery Tank Capacity	Approx. 31-Gallon Class
Squeegee	37-Inch Class
Vacuum Motor	Approx. 0.67 HP
Brush Motors	2 x Approx. 0.4 HP
Drive Motor	Approx. 0.67 HP
Maximum Travel Speed	Approx. 3.7 MPH
Maximum Productivity	Approx. 55,219 sq. ft./hr.
Sound Pressure Level	Approx. 69 dB(A)
Maximum Climbing Rate	10%
Minimum Aisle Turn	Approx. 72 in.
Battery Compartment	Approx. 24 x 16 x 14.3 in.
Machine Length	Approx. 62.2 in.
Published Machine Height	Approx. 48.5 in.
Published Net Weight	Approx. 507 lbs.
Maximum Shipping Weight	Approx. 970 lbs.
One-Touch Scrubbing	Yes
Solution Flow Settings	4
Recovery Emptying Hose	Yes
Water-Level Indicator	Yes
Front and Rear Bumpers	Yes
Onboard Squeegee Storage	Yes
USB Charging Port	Yes

Included

• VIPER AS710R Ride-On Automatic Scrubber

• Four 128Ah TPPL Batteries

• 50-Amp Shelf Battery Charger

• Dual-Disc Cleaning Deck

• Pad Holders

• Scrub Brushes

• 37-Inch-Class Rear Squeegee Assembly

• Recovery Emptying Hose

• Integrated Squeegee Storage System

Optional / Recommended Accessories

• Compatible Floor Pads

• Replacement Scrub Brushes

• Replacement Squeegee Blades

• Other Compatible VIPER AS710R Accessories
